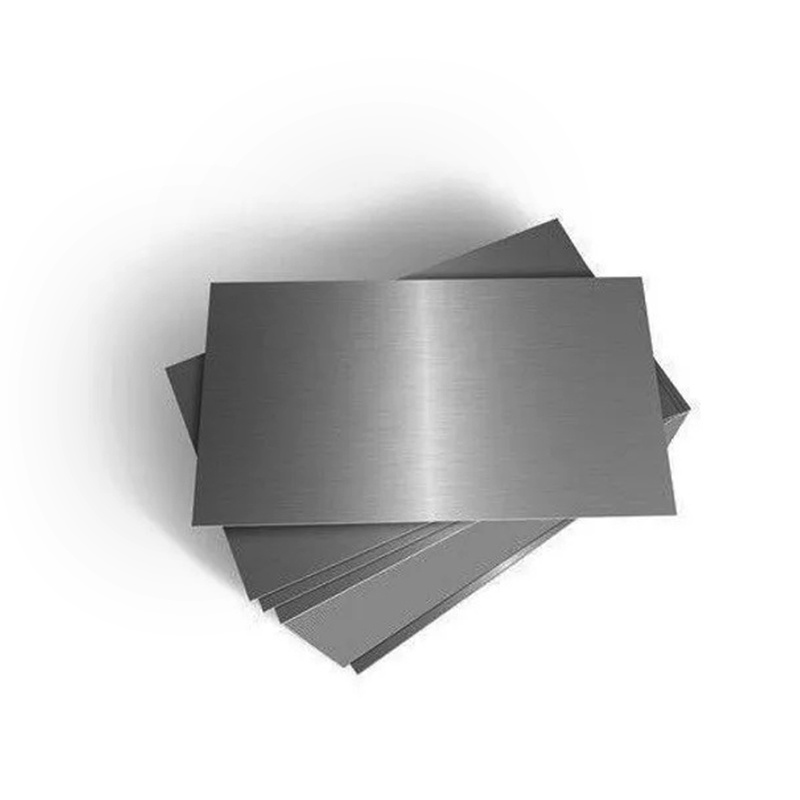

202 Stainless Steel Plate Description
202 stainless steel is an austenitic chromium-nickel-manganese alloy known for its high ductility, good corrosion resistance, and excellent toughness in both high and low-temperature environments. It is one of the most widely used 200 series stainless steels. The austenitic structure of 202 stainless steel is stabilized by the addition of nickel and manganese, preventing the formation of harmful phases such as sigma phase or chromium carbide. The high nickel content also enhances the corrosion and oxidation resistance of the steel at elevated temperatures.
Product Parameters
| Product Name | 202 Stainless Steel Plate |
| Type | Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Scope of Application | Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
| ≤ 0.15 | ≤1.0 | 7.5~10.0 | 17.00~19.00 | 4.00~6.00 | ≤ 0.03 | ≤ 0.06 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 520 | ≥ 275 | ≥40-50 | ≤207HB；≤ 95 HRB;≤218HV |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(μohm.in) |
| 7.93 | 203 | 17.5 | 16.3 | 22 |
Surface Selection
