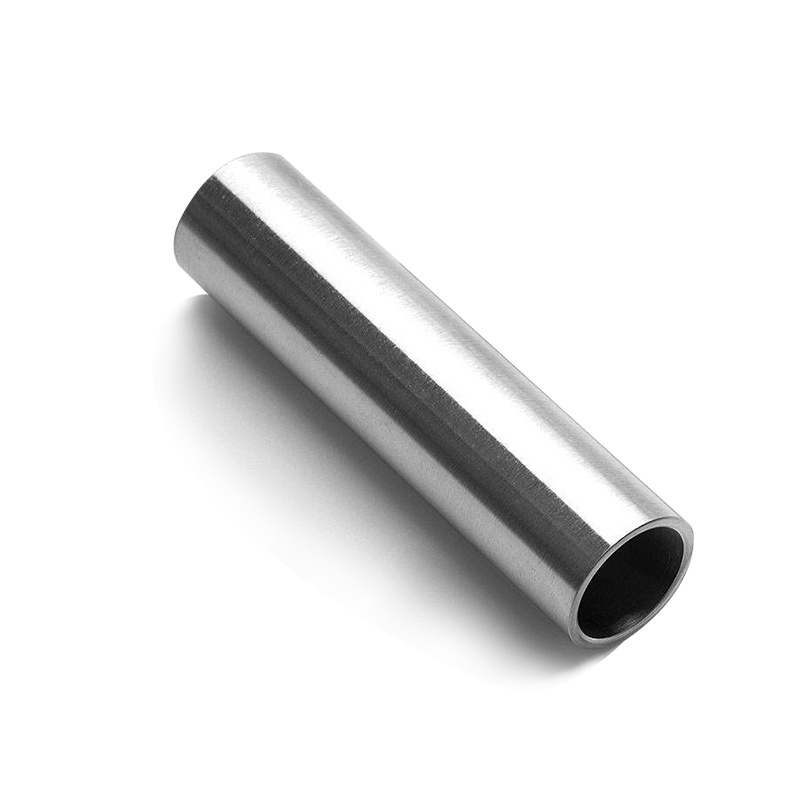

310S Stainless Steel Pipe Description
What makes 310S unique is its superior composition, with a higher percentage of chromium and nickel than standard stainless steel. This unique blend not only enhances its resistance to oxidation but also significantly improves its resistance to corrosion, making it ideal for industries such as aerospace, chemical processing and power generation. Whether exposed to harsh chemicals or extreme heat, the 310S is tough enough to ensure longevity and reliability in even the most challenging conditions.One of the outstanding features of 310S stainless steel is its excellent creep strength. This means it can maintain its strength and shape despite prolonged exposure to high temperatures, making it ideal for applications that require continuous operation at high temperatures. From furnace components to heat exchangers, the 310S is engineered for superior performance, giving both engineers and manufacturers peace of mind.
Product Parameters
| Product Name | 310S Stainless Steel Pipe | |
| Type | Steel Pipe | |
| Outer diameter | Round Tube | 4mm-200mm |
| Square Tube | 10*10mm-100*100mm | |
| Rectangular Tube | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. | |
| Scope of Application |
Common applications for stainless steel pipes include food processing,
Textile operations, Breweries, Water treatment plants, Oil and gas processing,
Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
|
|
| Certificate | ISO, SGS, BV, etc. | |
| Production Technology | Hot Rolling, Cold Rolling | |
| Edge Processing | Edging, Trimming | |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
| ≤ 0.08 | ≤1.0 | ≤2.0 | 24.0~26.0 | 19.0~22.0 | ≤ 0.03 | ≤ 0.045 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥520 | ≥205 | ≥40 | ≤ 217HB;≤ 95HRB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 9.01 | 200 | 14.4 | 13.8 | 94 |
