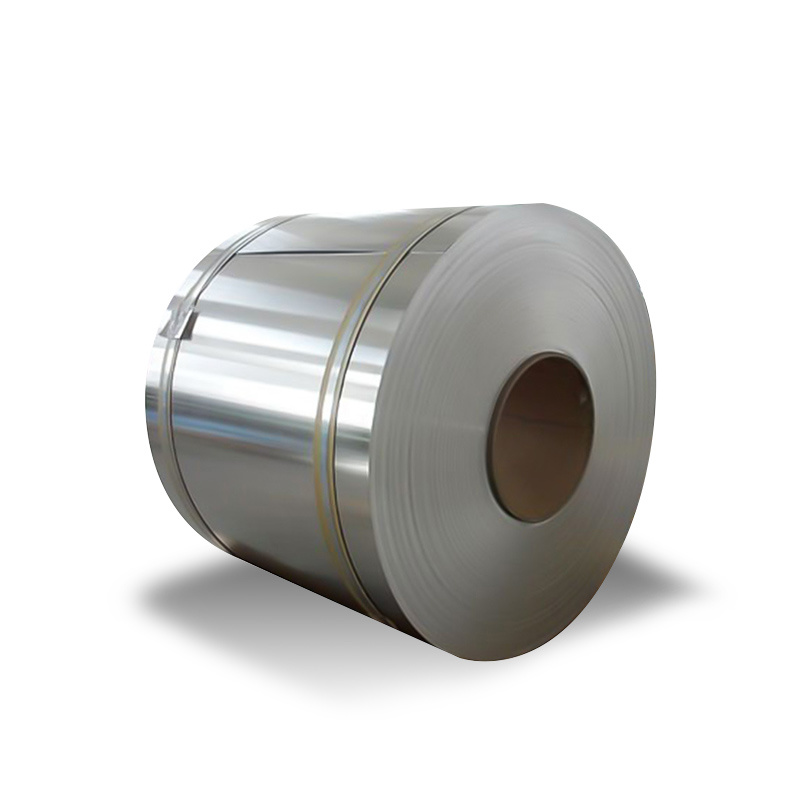

3003 Aluminum Coil Description
3003 aluminum coil is the most widely used anti-rust aluminum so far. The strength of this alloy is slightly higher than industrial pure aluminum and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties. It has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening. It is mainly used for low-load parts that require high plasticity and good weldability and work in liquid or gas media, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing. 3003 aluminum coils are commonly used in ships, warships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels that require strict fire protection.
Product Parameters
Width |
20-3000mm or Customized |
Thickness |
0.1-120mm or Customized |
Length |
100-12000mm or Customized |
Certificate |
ISO, SGS, BV |
Standard |
JIS, AISI, ASTM, GB, DIN, EN, etc. |
||
Brand |
1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. |
||
Surface |
Coating, Embossing, Drawing, Polishing, Anodizing, etc. |
||
OEM Service |
Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. |
||
Delivery Time |
Received 30%, After deposit 7-15 working day |
||
Application |
Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. |
||
Sample |
Free Offers Sample |
||
Packaging |
Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
||
Chemical Composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
- |
0.05 |
0.03 |
0.03 |
- |
99.50 |
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
0.05 |
0.03 |
0.03 |
- |
99.60 |
1070 |
0.20 |
0.25 |
0.04 |
0.03 |
0.03 |
- |
0.04 |
0.03 |
0.05 |
- |
99.70 |
1100 |
0.95 Si Fee |
0.05~0.20 |
0.05 |
- |
- |
0.1 |
- |
0.05 |
0.15 |
99.0 |
|
2014 |
0.5~1.2 |
0.7 |
3.9~5.0 |
0.4~1.2 |
0.2~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
2017 |
0.2~0.8 |
0.7 |
3.5~4.5 |
0.4~1.0 |
0.4~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
91.5 - 95.5 |
2024 |
0.50 |
0.50 |
3.8~4.9 |
0.3~0.9 |
1.2~1.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
3003 |
0.60 |
0.70 |
0.05~0.20 |
1.0~1.5 |
- |
- |
0.10 |
- |
0.05 |
0.15 |
Margin |
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.6 |
0.05 |
- |
0.15 |
0.1-0.2 |
- |
- |
Margin |
3004 |
0.30 |
0.70 |
0.25 |
1.0~1.5 |
0.8~1.3 |
- |
0.25 |
- |
0.05 |
0.15 |
Margin |
3005 |
0.60 |
0.70 |
0.30 |
1.0~1.5 |
0.2~0.6 |
0.10 |
0.25 |
0.10 |
0.05 |
0.15 |
Margin |
3105 |
0.60 |
0.70 |
0.30 |
0.3~0.8 |
0.2~0.8 |
0.20 |
0.40 |
0.10 |
0.05 |
0.15 |
Margin |
5005 |
0.30 |
0.70 |
0.20 |
0.20 |
0.5~1.1 |
0.1 |
0.25 |
- |
0.05 |
0.15 |
Margin |
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2~2.8 |
0.15~0.35 |
0.10 |
- |
0.05 |
0.15 |
Margin |
5754 |
0.40 |
0.40 |
0.10 |
0.50 |
2.6~3.6 |
0.30 |
0.20 |
0.15 |
0.05 |
0.15 |
Margin |
5A05 |
0.50 |
0.50 |
0.10 |
0.3-0.6 |
4.8-5.5 |
- |
0.20 |
- |
0.05 |
0.05 |
Margin |
5083 |
0.40 |
0.40 |
0.10 |
0.4~1.0 |
4.0~4.9 |
0.05~0.25 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
6061 |
0.40~0.8 |
0.70 |
0.15~0.4 |
0.15 |
0.8~1.2 |
0.04~0.35 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
6082 |
0.70~1.3 |
0.50 |
0.10 |
0.4~1.0 |
0.6~1.2 |
0.25 |
0.20 |
0.10 |
0.05 |
0.15 |
Margin |
7075 |
0.40 |
0.50 |
1.2~2.0 |
0.30 |
2.1~2.9 |
0.18~0.28 |
5.1~6.1 |
0.20 |
0.05 |
0.15 |
Margin |
Mechanical Properties
|
Tensile Strength (MPa) |
Test Stress (MPa) |
Hardness HB |
Elongation Rate (%) |
95-135 |
≥ 35 |
28 |
10 |
Physical Performance
Density |
Melting Point |
Thermal Expansion |
Thermal Conductivity |
Resistivity |
2.73 Kg/m³ |
655 °C |
23.1(10 -6/℃) |
190 W/m.K |
0.034× 10-6Ω.m |
Annealing State
Brand |
Annealing State |
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
2xxx: 2024 |
T3, T351, T4 |
7xxx: 7075 |
T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
Other |
Military, color coated aluminum plate |
