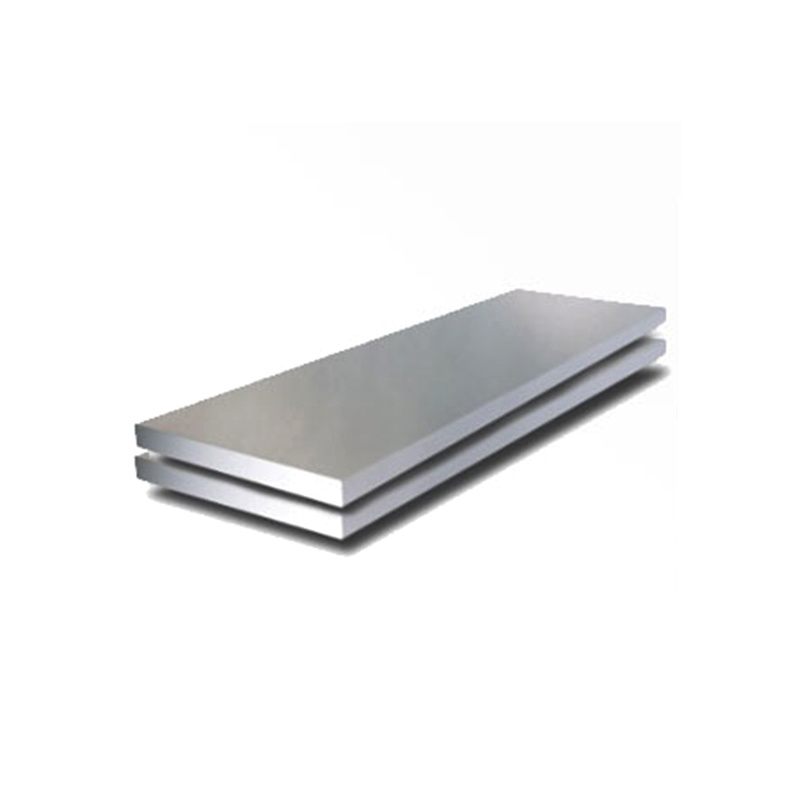

304L Stainless Steel Plate Description
304L stainless steel plate, a variant of 304 stainless steel plate, features a lower carbon content and is particularly suitable for applications requiring welding. The reduced carbon content helps minimize the precipitation of carbides in the heat-affected zone near the weld, which can lead to intergranular corrosion in specific environments. Utilizing 304L eliminates the necessity to anneal weld joints before using the finished metal form, thus saving time and effort. In general, both 304 and 304L stainless steel plates can be employed for similar applications, with differences that are often minor enough that one is not significantly more advantageous than the other. 304L stainless steel plate finds widespread use in fields such as food processing equipment, building materials, and automobile parts.
Product Parameters
| Product Name | 304L Stainless Steel Plate |
| Type | Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Scope of Application | Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
| ≤ 0.03 | ≤1.0 | ≤ 2.0 | 18.0～20.0 | 8.0～12.0 | ≤ 0.03 | ≤ 0.035 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 520 | ≥ 205 | ≥ 40 | ≤ 187HB ;≤ 90HRB;≤ 200HV |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 8.03 | 193 | 16.9 | 16.2 | 72 |
Surface Selection
