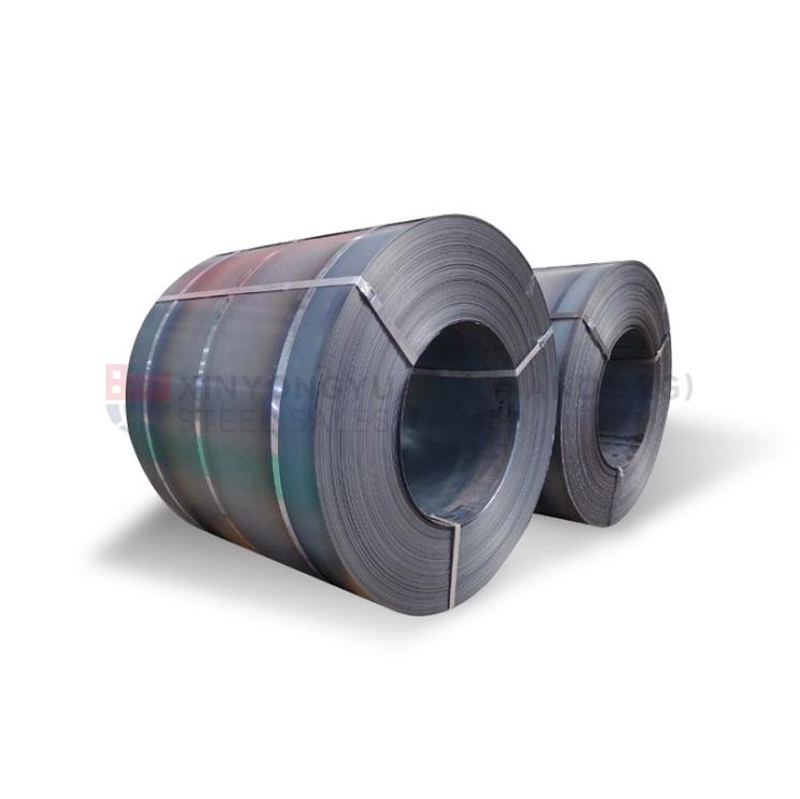

4135/4140/4142/6150 Alloy Coil EN10083-3

EN 10083-3 steel is a type of alloy steel specifically designed for quenching and tempering processes. This standard governs the technical delivery conditions of alloy steels, ensuring their suitability for various industrial applications.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

4135/4140/4142/6150 Alloy Coil EN10083-3 description

EN 10083-3 steel coil comprises various steel types including 50CrMo4, 51CrV4, 20MnB5, 34CrMo4, 42CrMo4, and 27MnCrB5-2, known for their high strength, toughness, and good hardenability. These alloys necessitate high-temperature preheating before welding to relieve stress after welding. EN 10083-3 steel coils are commonly used in the manufacturing of tools requiring good formability and high strength, often chosen for the production of large and critical components such as heavy-duty mechanical shafts, turbine shaft blades, high-load transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of electric motor structures.

Product Parameters

Product Name	4135/4140/4142/6150 Alloy Coil EN10083-3

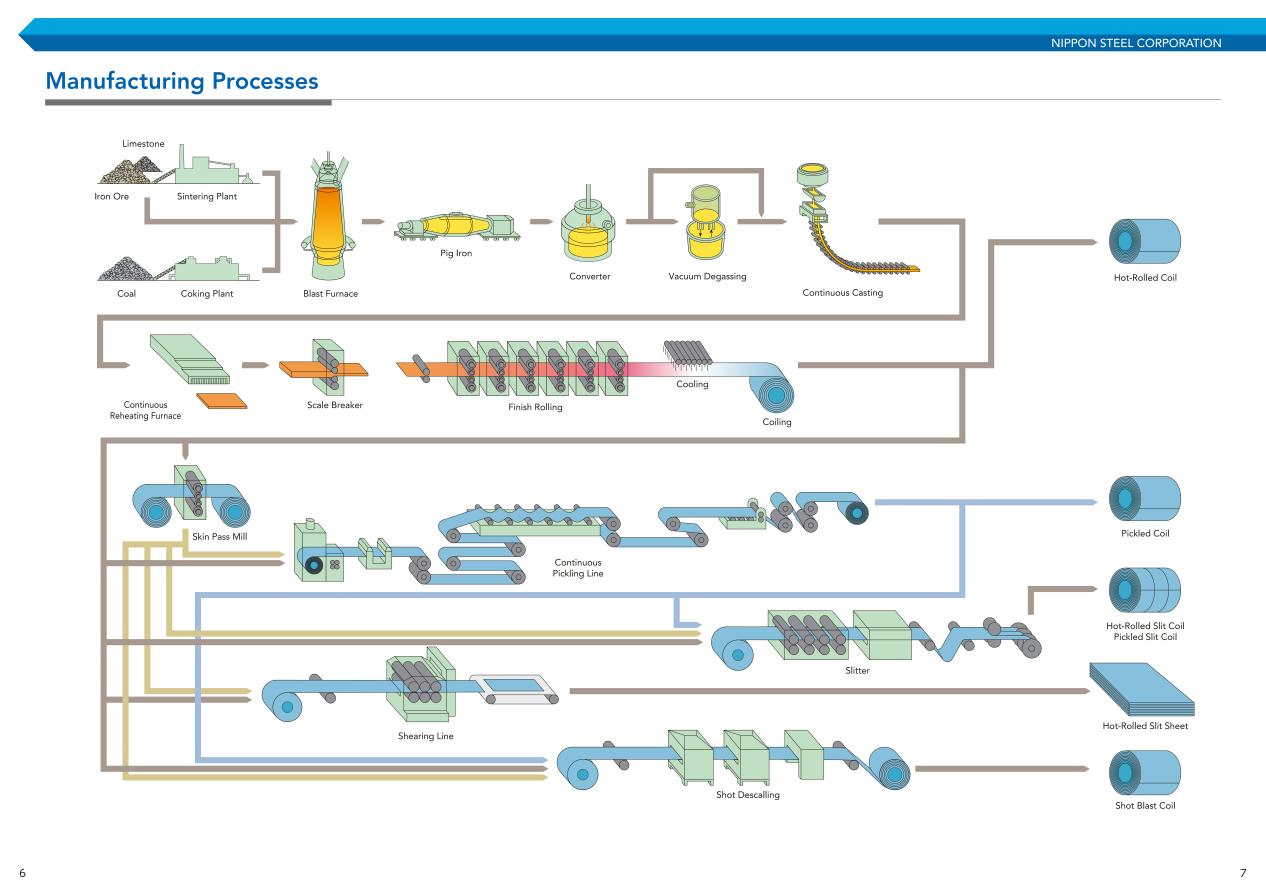

Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film
Scope of Application	EN 10083-3 steel plates are utilized in the production of tools requiring good plasticity and high strength. They are commonly chosen for manufacturing large and critical components such as heavy mechanical shafts, turbine shaft blades, high-load transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of motor structures.

Chemical Composition

Brand	C	Si max	Mn	P max	S max	Cr	Mo	V
34CrMo4	0.3-0.37	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	-
42CrMo4	0.38-0.45	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	-
50CrMo4	0.46-0.54	0.40	0.5-0.8	0.025	0.035	0.9-1.2	0.15-0.3	-
51CrV4	0.47-0.55	0.40	0.7-1.1	0.025	0.025	0.9-1.2	-	0.1-0.25

Mechanical Properties

Thickness	Re min. N/mm2	Rm N/mm2	A min%	From min%	KVb min J
≤ 8mm	900	1000-1300	10	40	-
8mm-20mm	750	1000-1200	11	45	35
20mm-60mm	650	900-1100	12	50	35
60mm-100mm	550	800-950	13	50	35
100mm-160mm	500	750-900	14	55	35

Equivalent Material

European Standard	American Standard	German Standard	Japanese Standard	National Standard	International Standards
34CrMo4	4135	34CrMo4	SCM435H	35CrMo	34CrMo4
42CrMo4	4140, 4142	42CrMo4	SCM440H	42CrMo	42CrMo4
50CrMo4	-	50CrMo4	-	50CrMo	50CrMo4
51CrV4	6150	50CrV4	SUP10	50CrVA	51CrV4
