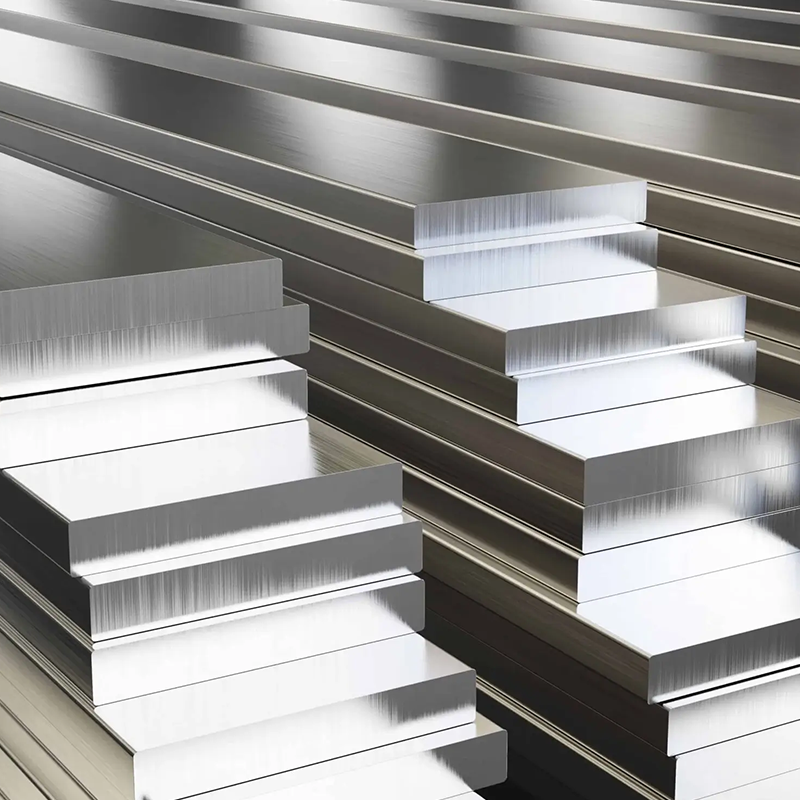

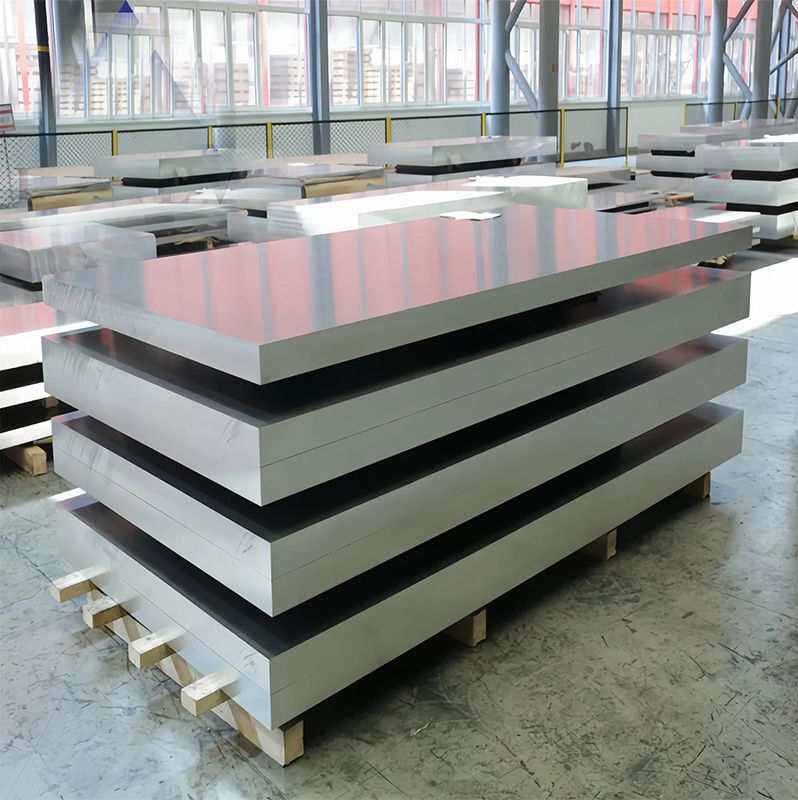

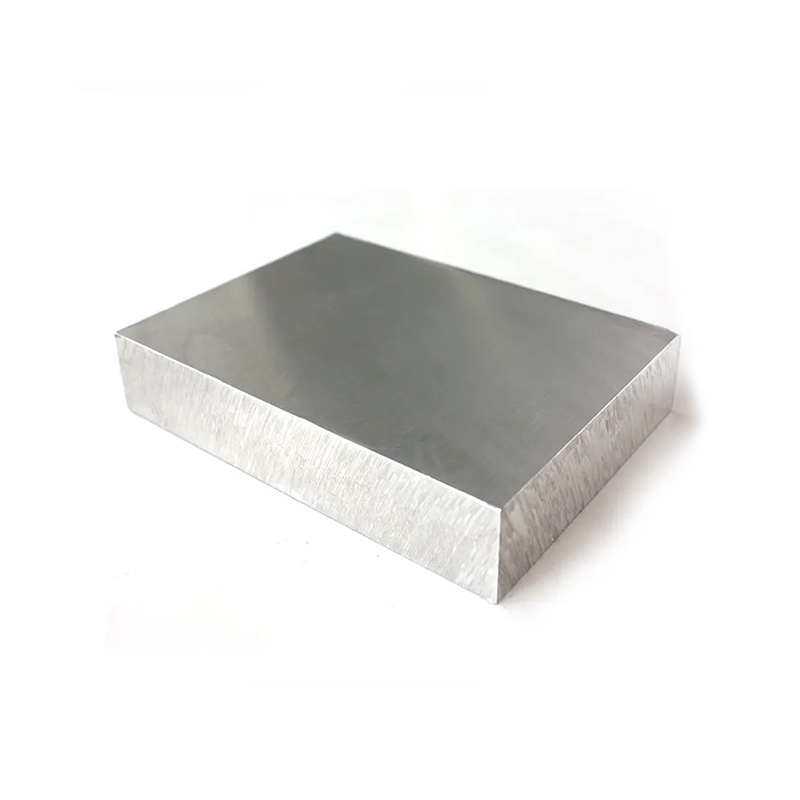

5005 Aluminum Plate Description
5005 aluminum plate is a common aluminum alloy material composed of aluminum and other alloy elements. Its chemical composition mainly includes aluminum, accounting for more than 99.7%, as well as small amounts of magnesium, silicon, and iron. 5005 aluminum alloy has good oxidation resistance in atmospheric environment and can effectively resist oxidation, corrosion, fading and other problems. Besides, 5005 aluminum alloy has good plasticity and processability, and can be formed through various methods such as cold working and hot working. The process of 5005 aluminum alloy has good adjustability, and its hardness, strength, plasticity and other properties can be adjusted through appropriate heat treatment processes. 5005 aluminum plate is often used to manufacture outdoor building materials, automobile bodies, boxes due to its good corrosion resistance.
Product Parameters
Width |
20-3000mm or Customized |
Thickness |
0.1-120mm or Customized |
Length |
100-12000mm or Customized |
Certificate |
ISO, SGS, BV |
Standard |
JIS, AISI, ASTM, GB, DIN, EN, etc. |
||
Brand |
1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. |
||
Surface |
Coating, Embossing, Drawing, Polishing, Anodizing, etc. |
||
OEM Service |
Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. |
||
Delivery Time |
Received 30%, After deposit 7-15 working day |
||
Application |
Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. |
||
Sample |
Free Offers Sample |
||

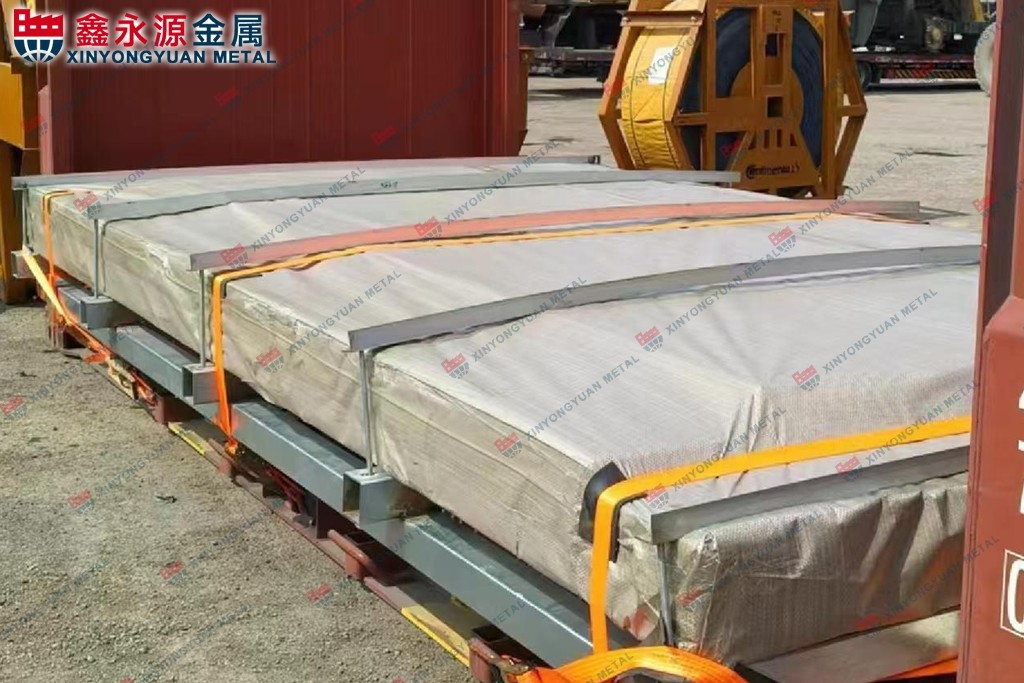

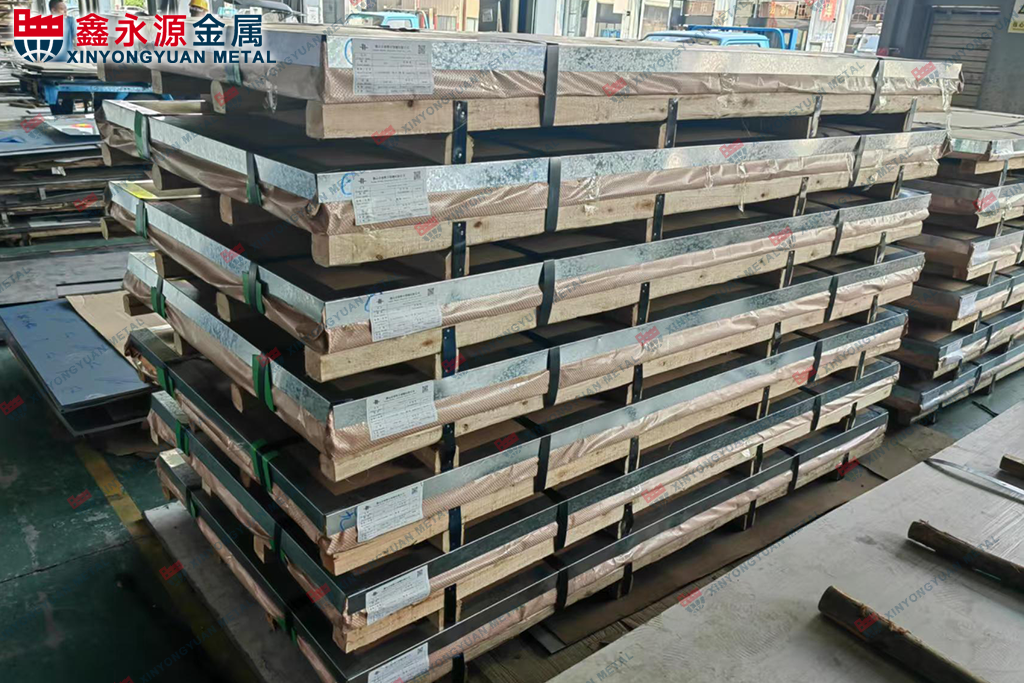

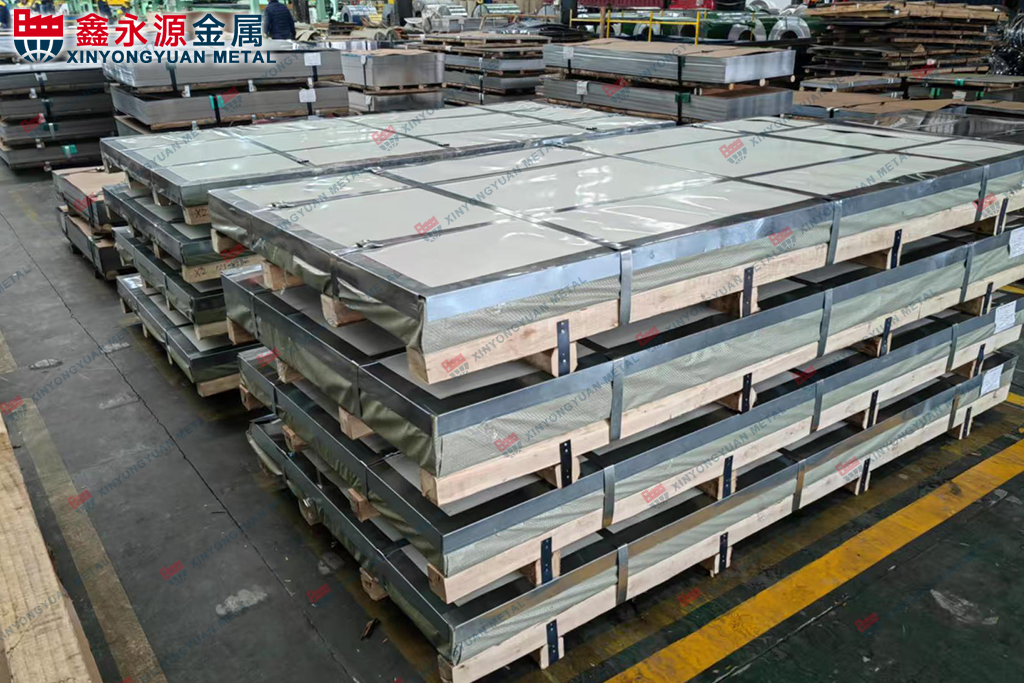

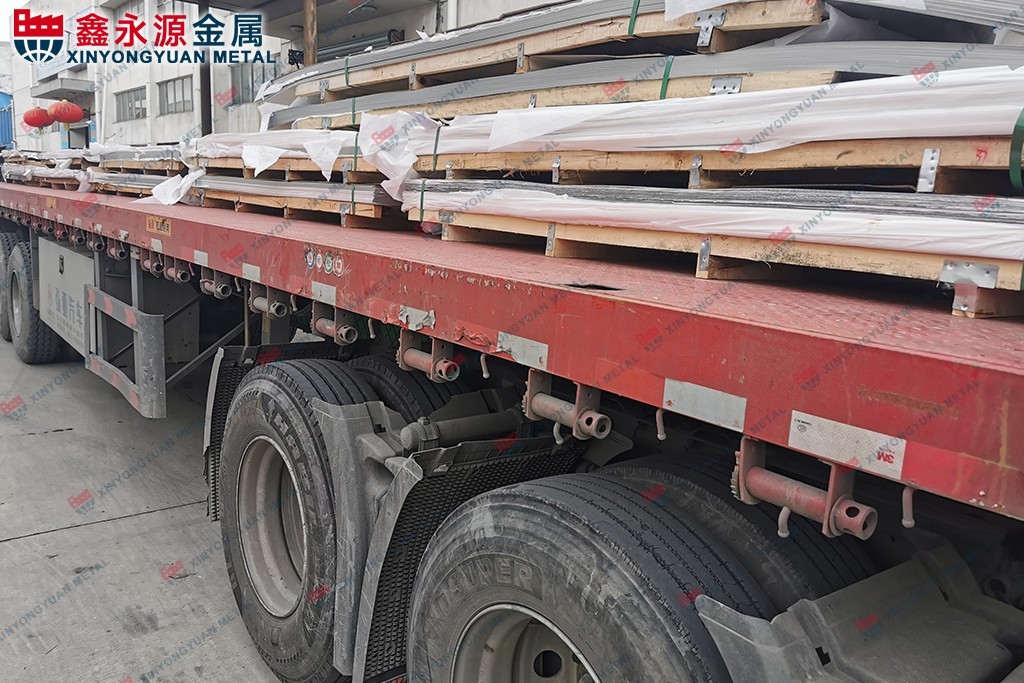

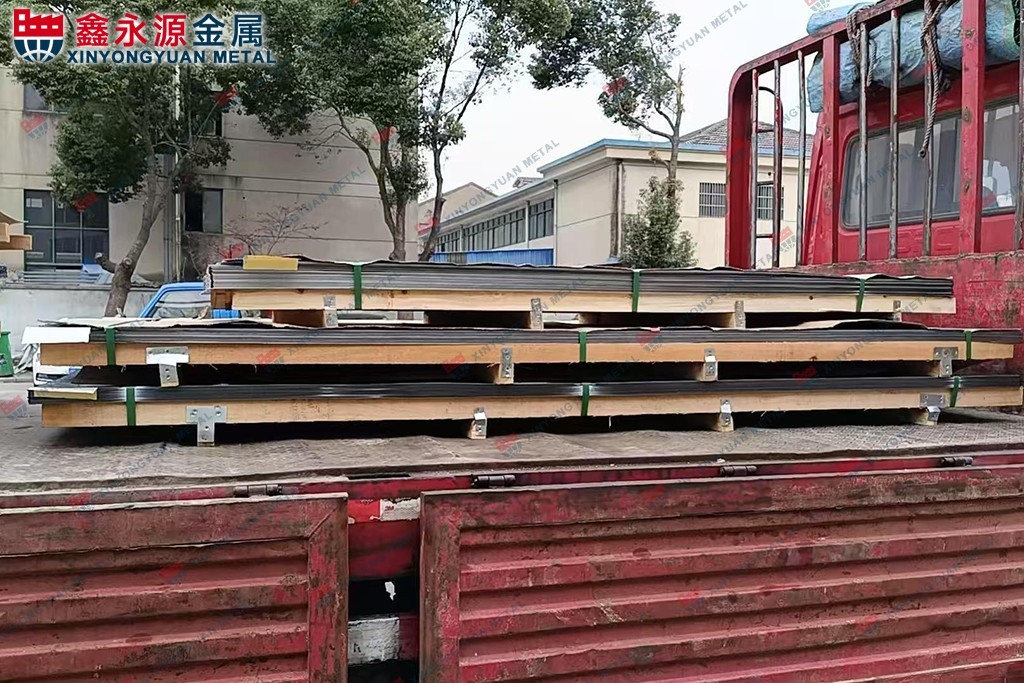

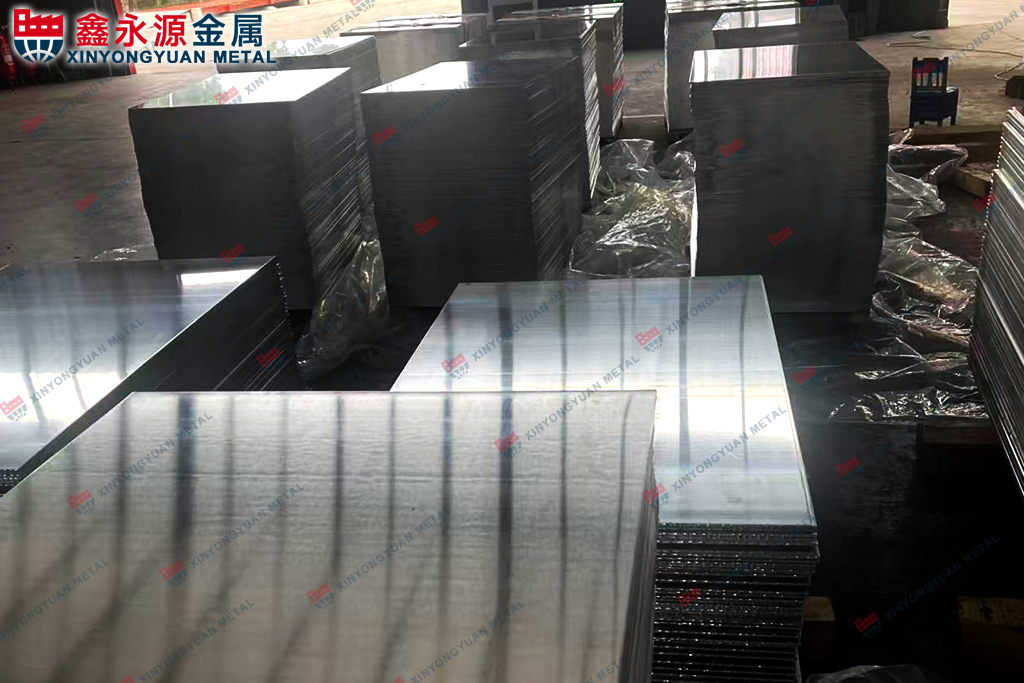

Packaging |
Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
||
Chemical Composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
- |
0.05 |
0.03 |
0.03 |
- |
99.50 |
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
0.05 |
0.03 |
0.03 |
- |
99.60 |
1070 |
0.20 |
0.25 |
0.04 |
0.03 |
0.03 |
- |
0.04 |
0.03 |
0.05 |
- |
99.70 |
1100 |
0.95 Si Fee |
0.05~0.20 |
0.05 |
- |
- |
0.1 |
- |
0.05 |
0.15 |
99.0 |
|
2014 |
0.5~1.2 |
0.7 |
3.9~5.0 |
0.4~1.2 |
0.2~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
2017 |
0.2~0.8 |
0.7 |
3.5~4.5 |
0.4~1.0 |
0.4~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
91.5 - 95.5 |
2024 |
0.50 |
0.50 |
3.8~4.9 |
0.3~0.9 |
1.2~1.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
3003 |
0.60 |
0.70 |
0.05~0.20 |
1.0~1.5 |
- |
- |
0.10 |
- |
0.05 |
0.15 |
Margin |
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.6 |
0.05 |
- |
0.15 |
0.1-0.2 |
- |
- |
Margin |
3004 |
0.30 |
0.70 |
0.25 |
1.0~1.5 |
0.8~1.3 |
- |
0.25 |
- |
0.05 |
0.15 |
Margin |
3005 |
0.60 |
0.70 |
0.30 |
1.0~1.5 |
0.2~0.6 |
0.10 |
0.25 |
0.10 |
0.05 |
0.15 |
Margin |
3105 |
0.60 |
0.70 |
0.30 |
0.3~0.8 |
0.2~0.8 |
0.20 |
0.40 |
0.10 |
0.05 |
0.15 |
Margin |
5005 |
0.30 |
0.70 |
0.20 |
0.20 |
0.5~1.1 |
0.1 |
0.25 |
- |
0.05 |
0.15 |
Margin |
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2~2.8 |
0.15~0.35 |
0.10 |
- |
0.05 |
0.15 |
Margin |
5754 |
0.40 |
0.40 |
0.10 |
0.50 |
2.6~3.6 |
0.30 |
0.20 |
0.15 |
0.05 |
0.15 |
Margin |
5A05 |
0.50 |
0.50 |
0.10 |
0.3-0.6 |
4.8-5.5 |
- |
0.20 |
- |
0.05 |
0.05 |
Margin |
5083 |
0.40 |
0.40 |
0.10 |
0.4~1.0 |
4.0~4.9 |
0.05~0.25 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
6061 |
0.40~0.8 |
0.70 |
0.15~0.4 |
0.15 |
0.8~1.2 |
0.04~0.35 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
6082 |
0.70~1.3 |
0.50 |
0.10 |
0.4~1.0 |
0.6~1.2 |
0.25 |
0.20 |
0.10 |
0.05 |
0.15 |
Margin |
7075 |
0.40 |
0.50 |
1.2~2.0 |
0.30 |
2.1~2.9 |
0.18~0.28 |
5.1~6.1 |
0.20 |
0.05 |
0.15 |
Margin |
Mechanical Properties
|
Tensile Strength (MPa) |
Test Stress (MPa) |
Hardness HV |
Elongation Rate (%) |
160 |
145 |
46 |
11 |
Physical Performance
Density |
Melting Point |
Modulus of Elasticity |
Thermal Conductivity |
Resistance Rate |
2.7 Kg/m³ |
655 °C |
69.5 GPa |
201W/m.K |
0.033x10 ^-6Ω.m |
Annealing State
Brand |
Annealing State |
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
2xxx: 2024 |
T3, T351, T4 |
7xxx: 7075 |
T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
Other |
Military, color coated aluminum plate |
