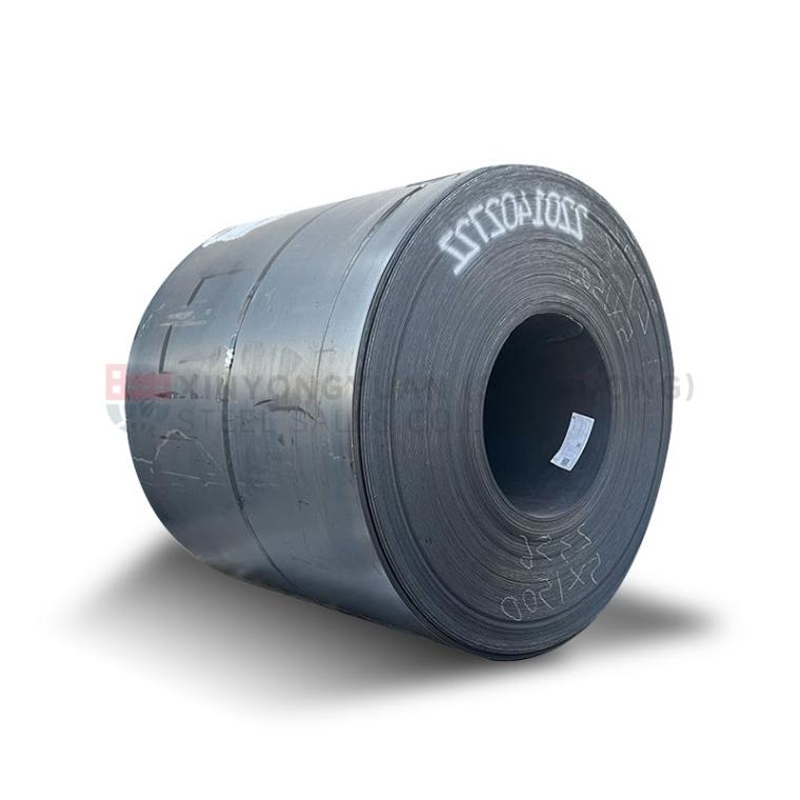

A202 Pressure Vessel Carbon Steel Coil

The ASTM A202 pressure vessel steel coil is primarily utilized for welding boilers and other pressure vessels. It comprises two grades: Grade A and Grade B.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A202 Pressure Vessel Carbon Steel Coil description

The A202 pressure vessel steel coil is primarily employed for welding boilers and other pressure vessels. It consists of two grades: Grade A and Grade B. The A202 boiler vessel coil finds extensive application in oil and gas engineering projects for the production of pressure vessels, boilers, storage tanks, heat exchangers, and other related equipment.

Product Parameters

Product Name	A202 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film
Scope of Application	ASTM A202 boiler vessel plate is extensively utilized in oil and gas engineering projects for the production of pressure vessels, boilers, storage tanks, heat exchangers, and other related equipment.

Chemical Composition

A202	Chemical Element Content(Upper Limit%)
A202	C	Si	Mn	P	S	Cr
GradeA	0.17	0.54-0.96	0.97-1.52	0.035	0.035	0.31-0.64
GradeB	0.25	0.54-0.96	0.97-1.52	0.035	0.035	0.31-0.64

Mechanical Properties

A202	Tensile Strength kis[MPa]	Yield Strength kis[MPa]	Elongation Gauge Length 8in.[200mm],%	Elongation Gauge Length 2in.[50mm],%
GradeA	75-95 [515-655]	45 [310]	≧ 16	≧ 19
GradeB	85-110 [585-760]	47 [325]	≧ 15	≧ 18
