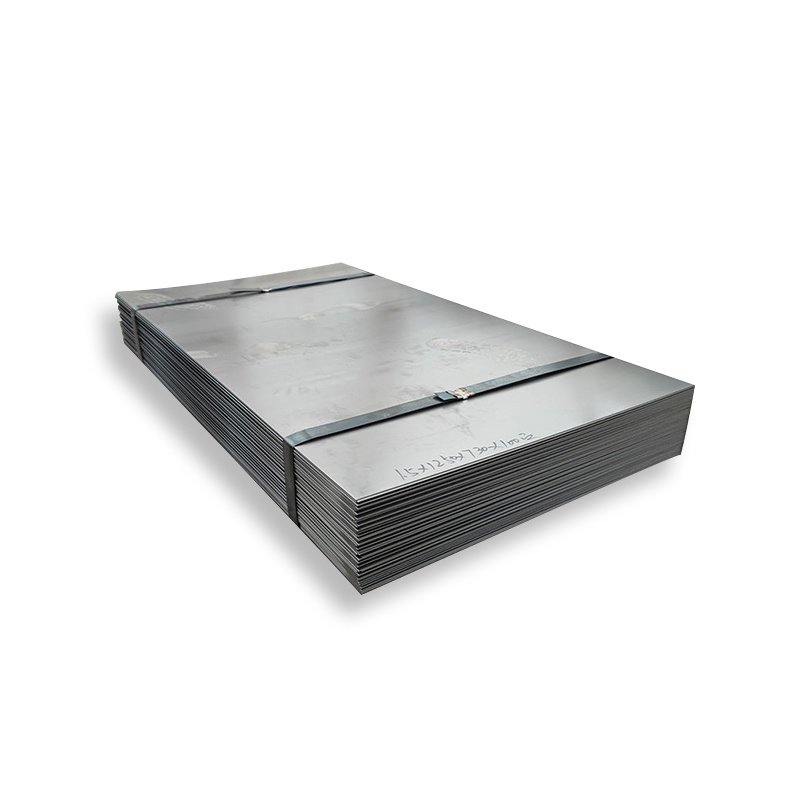

A204 Pressure Vessel Steel Plate

ASTM A204 boiler vessel plate is a molybdenum alloy steel plate primarily designed for welding boilers and high-temperature pressure vessels.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A204 Pressure Vessel Steel Plate description

ASTM A204 boiler vessel plate is categorized into three grades: A, B, C based on the molybdenum content. The thickness of ASTM A204 boiler vessel plates is determined by the ability of the chemical composition to meet the specified mechanical property requirements. These plates find extensive use in various industries including petroleum, chemical, power generation, and boiler sectors, particularly in the manufacturing of reactors, heat exchangers, separators, spherical tanks, liquefied gas storage, nuclear reactor pressure vessels, boiler drum steam, liquefied petroleum gas facilities, hydropower stations, and high-pressure pipelines.

Product Parameters

Product Name	A204 Pressure Vessel Steel Plate
Type	Hot Rolling, Cold Rolling
Thickness	0.1mm-400mm
Length	1m-12m, or Customized Size
Width	100mm-3000mm
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Scope of Application	ASTM A204 boiler vessel plate is extensively utilized in the petroleum, chemical, power generation, and boiler industries for manufacturing reactors, heat exchangers, separators, spherical tanks, liquefied gas storage, nuclear reactor pressure vessels, boiler drum steam, liquefied petroleum gas facilities, hydropower stations, and high-pressure pipelines.
Certificate	ISO, SGS, BV, etc.
Production Technology	Rolling, Annealing, Quenching, Tempered or Standard
Edge Processing	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A204	Upper limit of Chemical Element Content (%)
A204	C	Si	Mn	P	S	Mo
Class A	0.18-0.25	0.13-0.45	0.90-0.98	0.035	0.035	0.45-0.60
Class B	0.20-0.27	0.13-0.45	0.90-0.98	0.035	0.035	0.45-0.60
Class C	0.23-0.28	0.13-0.45	0.90-0.98	0.035	0.035	0.45-0.60

Mechanical Properties

A203	Tensile Strengthkis[MPa]	Yield Strength kis[MPa]	Elongation Gauge length 8in.[200mm],%	Elongation Gauge length 2in.[50mm],%
GradeA	65-85 [450-585]	37 [255]	19	23
GradeB	70-90 [485-620]	40 [275]	17	21
GradeD	65-85 [450-585]	37 [255]	19	23
GradeE	70-90 [485-620]	40 [275]	17	21
GradeF	75-100 [515-690]	50 [345]	-	20

A204	Tensile Strength kis[MPa]	Yield Strength kis[MPa]	Elongation Gauge length 8in.[200mm],%	Elongation Gauge length 2in.[50mm],%
GradeA	70-90 [485-620]	37 [255]	19	23
GradeB	75-95 [515-655]	40 [275]	17	21
GradeC	75-95 [515-655]	43 [295]	16	20
