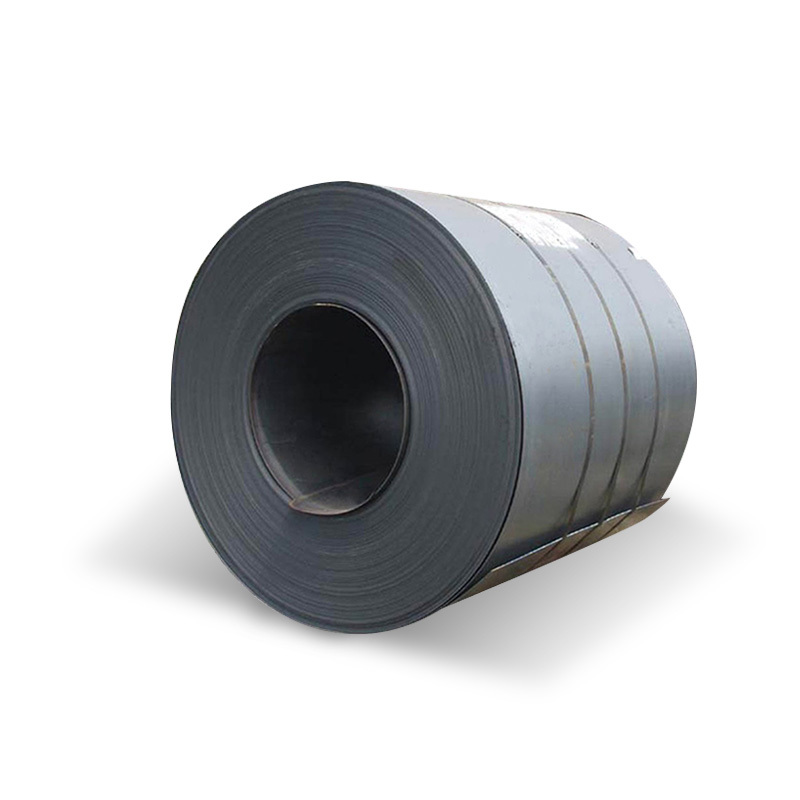

A283/Q195 Cold Rolled Steel Coil

The ASTM A283 specification covers four different grades of mild steel: A, B, C, and D. Each grade is tailored to provide specific mechanical properties, ensuring you can choose the perfect option for your unique needs. Whether you are building residential buildings, commercial buildings, or industrial applications, ASTM A283 cold-rolled steel coils provide the durability and performance you need.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

A283/Q195 Cold Rolled Steel Coil Description

One of the outstanding features of this steel coil is its excellent weldability and formability, making it easy to handle and incorporate into your design. The cold rolling process improves the surface finish, resulting in a smooth, beautiful and corrosion-resistant product. This makes it not only functional but also visually attractive in exposed applications.In addition to its structural benefits, ASTM A283 cold rolled steel coil is cost-effective, providing a balance between quality and price. It is available in a variety of thicknesses and widths, ensuring you can find the right material for your project without compromising performance.Choose ASTM A283 cold rolled steel coil for your next project and experience the perfect combination of strength, versatility, and value. With its proven track record in the industry, you can be confident that this steel coil will meet your expectations and contribute to the success of your construction business. Elevate your projects with the reliability of ASTM A283 steel today!

Product Parameters

Product Name	A283/Q195 Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A283	C max.	Mn max.	P max.	S max.	Si (Greater1 inch, less than 1/2 inch)	Si (Greater 1/2 inch)	Cu min.
Grade A	0.14	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade B	0.17	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade C	0.24	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade D	0.27	0.90	0.035	0.04	0.40	0.15-0.40	0.20

Mechanical Properties

A283	Tensile Strength		Yield Strength min.		Elongation Rate 8 inches	Elongation Rate 2 inches
Grade A	45000-60000 psi	310-415 MPa	24000 psi	165 MPa	27 % min.	30 % min.
Grade B	50000-65000 psi	345-450 MPa	27000 psi	185 MPa	25 % min.	28 % min.
Grade C	55000-75000 psi	380-515 MPa	30000 psi	205 MPa	22 % min.	25 % min.
Grade D	60000-80000 psi	415-550 MPa	33000 psi	230 MPa	20 % min.	23 % min.

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A283 steel plate is a kind of low carbon steel with high strength and good formability. It is easy to process and manufacture, and can be safely welded by various welding methods. ASTM A283 steel plate is a structural carbon steel plate used for low or medium tensile strength applications. ASTM A283 steel plate is used in the manufacture of riveted, bolted and welded structures for storage tanks and cryogenic control vessels, bridges and buildings, including prefabricated buildings, warehouses and industrial commercial structures.
