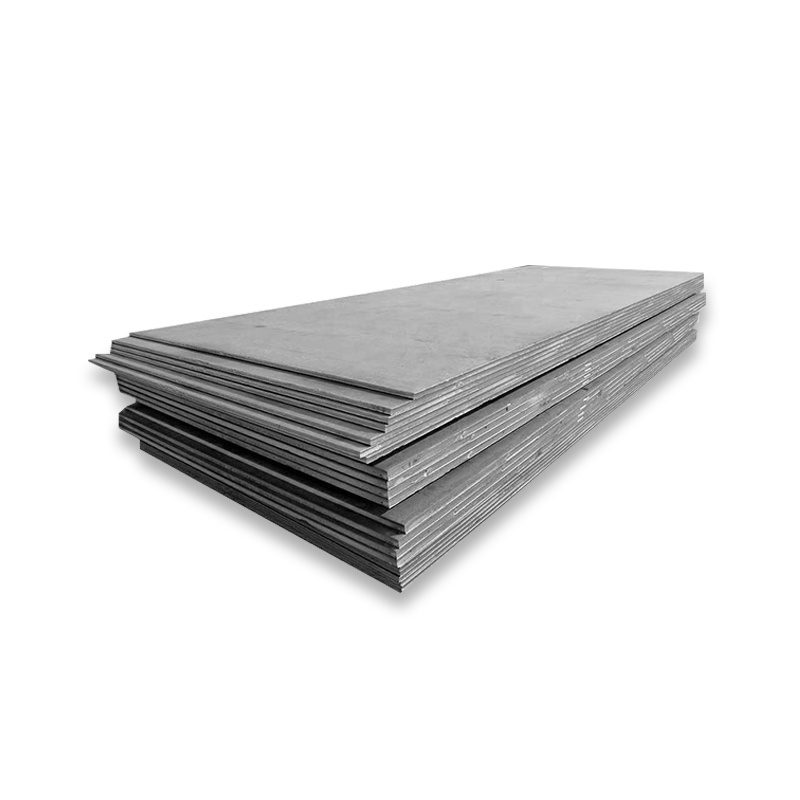

A283/Q195 Cold Rolled Steel Plate

ASTM A283 carbon steel plates are a solid choice when it comes to selecting the right material for your building and structural projects. Designed for general structural use, these plates offer the perfect balance of strength and versatility for a wide range of applications.ASTM A283 is available in four different grades - A, B, C and D - each tailored to meet different tensile strength and structural integrity requirements. This means that whether you are working on a small project or a large construction project, you can find the right grade to suit your specific needs. The low to medium tensile strength of ASTM A283 ensures that the material is easy to process while still providing the durability required for structural applications.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A283/Q195 Cold Rolled Steel Plate Description

One of the main benefits of ASTM A283 carbon steel plates is their excellent weldability and machinability. This makes them ideal for fabricators and engineers who need a material that is easy to form and join to create strong structures. Additionally, the mild steel component of ASTM A283 offers good corrosion resistance, ensuring your project will stand the test of time.Whether you are constructing a building, bridge, or other infrastructure, ASTM A283 carbon steel plates provide the reliability and performance you need. With a proven track record in the industry, these plates are trusted by professionals around the world for their quality and consistency.Choose ASTM A283 Carbon Steel Plate for your next project and experience the perfect combination of strength, versatility, and ease of use. Raise the bar in your construction with a material that delivers exceptional results every time.

Product Parameters

Product Name	A283/Q195 Cold Rolled Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered Or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A283	C max.	Mn max.	P max.	S max.	Si (Greater1 inch, less than 1/2 inch)	Si (Greater1/2 inch)	Cu min.
Grade A	0.14	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade B	0.17	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade C	0.24	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade D	0.27	0.90	0.035	0.04	0.40	0.15-0.40	0.20

Mechanical Properties

A283	Tensile Strength		Yield Strength min.		Elongation Rate 8 Inches	Elongation Rate 2 Inches
Grade A	45000-60000 psi	310-415 MPa	24000 psi	165 MPa	27% min.	30% min.
Grade B	50000-65000 psi	345-450 MPa	27000 psi	185 MPa	25% min.	28% min.
Grade C	55000-75000 psi	380-515 MPa	30000 psi	205 MPa	22% min.	25% min.
Grade D	60000-80000 psi	415-550 MPa	33000 psi	230 MPa	20% min.	23% min.

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A283 steel plate is a kind of low carbon steel with high strength and good formability. It is easy to process and manufacture, and can be safely welded by various welding methods. ASTM A283 steel plate is a structural carbon steel plate used for low or medium tensile strength applications. ASTM A283 steel plate is used in the manufacture of riveted, bolted and welded structures for storage tanks and cryogenic control vessels, bridges and buildings, including prefabricated buildings, warehouses and industrial commercial structures.
