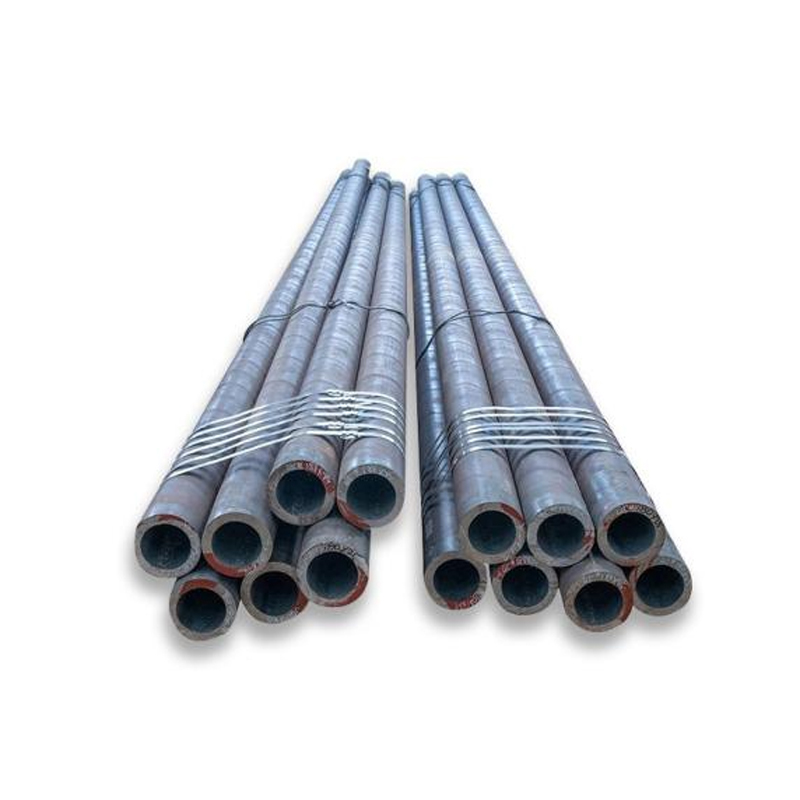

A333 Seamless & Welded Steel Pipe

ASTM A333 is the standard specification for seamless and welded carbon and alloy steel pipes designed for low-temperature applications or other applications necessitating notch toughness. This standard encompasses various grades of ferritic steel, including Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10, and Grade 11.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A333 Seamless & Welded Steel Pipe description

The primary elements of A333 seamless steel pipes comprise iron, carbon, chromium, nickel, manganese, and other components. Chromium offers exceptional corrosion resistance, while the addition of nickel further enhances the material’s corrosion resistance and toughness. A333 seamless steel pipes exhibit high strength, hardness, good plasticity, and toughness. These outstanding mechanical properties position A333 seamless steel pipes as an ideal choice for numerous high-strength, high-corrosion-resistant applications. Due to their excellent sealing and corrosion resistance, A333 seamless steel pipes are commonly utilized for transporting oil and natural gas under high temperature and high pressure conditions.

Product Parameters

Product Name	A333 Seamless & Welded Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.
Scope of Application	Steel pipes, both seamless and welded, are designed for use in low-temperature applications and other scenarios where notch toughness is essential.

Chemical Composition

A333	Grade1	Grade3	Grade4	Grade6	Grade7	Grade8	Grade9	Grade10	Grade11
C	0.30	0.19	0.12	0.30	0.19	0.13	0.20	0.20	0.10
Mn	0.40-1.06	0.31-0.64	0.50-1.05	0.29-1.06	0.90	0.90	0.40-1.06	1.15-1.50	0.60
P	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.035	0.025
S	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.015	0.025
Si	-	0.18-0.37	0.08-0.37	0.10 min	0.13-0.32	0.13-0.32	-	0.10-0.35	0.35
Ni	-	3.18-3.82	0.47-0.98	0.40	2.03-2.57	8.40-9.60	1.60-2.24	0.25	35.0-37.0
Cr	-	-	0.44-1.01	0.30	-	-	-	0.15	0.50
Cu	-	-	0.40-0.75	0.40	-	-	0.75-1.25	0.15	-
Al	-	-	0.04-0.30	-	-	-	-	0.06	-

Mechanical Properties

A333	Tensile Strength min.		Yield Strength min.		Elongation % min.
Grade	psi	MPa	psi	MPa	Vertical	Transverse
Grade1	55 000	380	30 000	205	35	25
Grade3	65 000	450	35 000	240	30	20
Grade4	60 000	415	35 000	240	30	16.5
Grade6	60 000	415	35 000	240	30	16.5
Grade7	65 000	450	35 000	240	30	22
Grade8	100 000	690	75 000	515	22	-
Grade9	63 000	435	46 000	315	28	-
Grade10	80 000	550	65 000	450	22	-
Grade11	65 000	450	35 000	240	18	-
