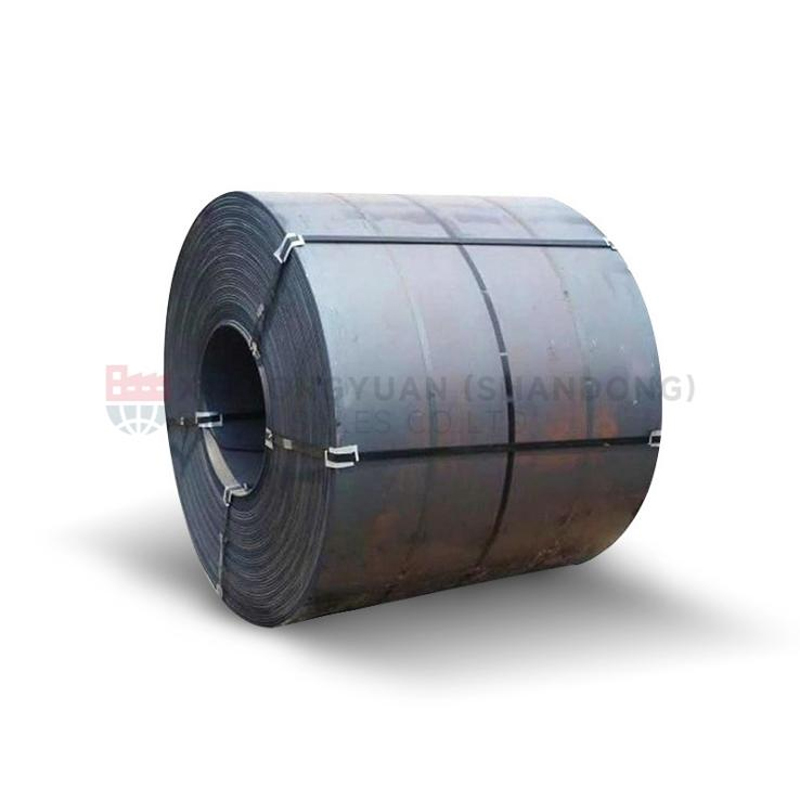

A36/Q235/S235JR Carbon Steel Coil

A36 is a carbon structural steel coil that adheres strictly to American ASTM standards in terms of its chemical composition and mechanical properties. Its widespread use in construction, bridges, machinery manufacturing, and other fields can be attributed to its excellent mechanical properties, welding performance, and corrosion resistance.


    Picture Name

    A36/Q235/S235JR Carbon Steel Coil description

    A36 steel coil primarily consists of iron, carbon, silicon, manganese, phosphorus, sulfur, and other elements. Iron is the predominant component, accounting for over 99% of the entire chemical composition. With a relatively high carbon content of around 0.2%, the steel exhibits a certain level of hardness and toughness. The addition of silicon, manganese, and other elements serves to enhance the strength and toughness of the steel. Meanwhile, the low content of elements such as phosphorus and sulfur ensures that the steel coil possesses good welding performance and corrosion resistance. A36 steel coil boasts excellent mechanical properties, with higher tensile strength, yield strength, elongation, and impact toughness compared to ordinary steel.

    Product Parameters

    Product Name A36/Q235/S235JR Carbon Steel Coil
    Production Process Hot Rolling, Cold Rolling
    Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
    Width 45mm-2200mm
    Length Custom Size
    Thickness Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
    Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard
    Surface Process Ordinary, Wire Drawing, Laminated Film
    Scope of Application Utilized in the construction of bolted, riveted, or welded structures for bridges, buildings, and oil drilling rigs. Also employed in the formation of storage tanks, silos, bearing plates, fixtures, rings, templates, sprockets, cams, gears, bottom plates, forgings, decorative engineering, piles, brackets, automobiles, agricultural equipment, frames, and mechanical parts.

    Chemical Composition

    C Cu Fe Mn P Si S
    0.25-0.290 0.20 98.0 1.03 0.040 0.280 0.050

    Mechanical Properties

    A36 Limit Tensile Strength Tensile Strength, Yield Strength Elongation at Break (Unit: 200mm) Elongation at break (Unit: 50mm) Modulus of Elasticity Bulk Modulus (Typical for Steel) Poisson's Ratio Shear Modulus
    Metric 400-550MPa 250MPa 20.0% 23.0% 200GPa 140GPa 0.260 79.3GPa
    Imperial 58000-79800psi 36300psi 20.0% 23.0% 29000ksi 20300ksi 0.260 11500ksi

    Physical Performance

    Physical Performance Metric Imperial
    Density 7.85 g/cm3 0.284 lb/in3

    Equivalent Material

    National Standard GB European Standard EN American Standard ASTM German Standard DIN, WNr Japanese Standard JIS French Standard AFNOR British Standard BS Canada HG
    Q235B S235JR A283C St37-2 SM400A E24-2 40A/40B 230G
    Italy UNI India IS Switzerland SS Australia ONORM Norway NS Spain UNE International Standards ISO Portugal NP
    Fe360B IS2062 1311/1312 RSt360B NS12123 AE235B-FN E235B/ Fe360B FE360
