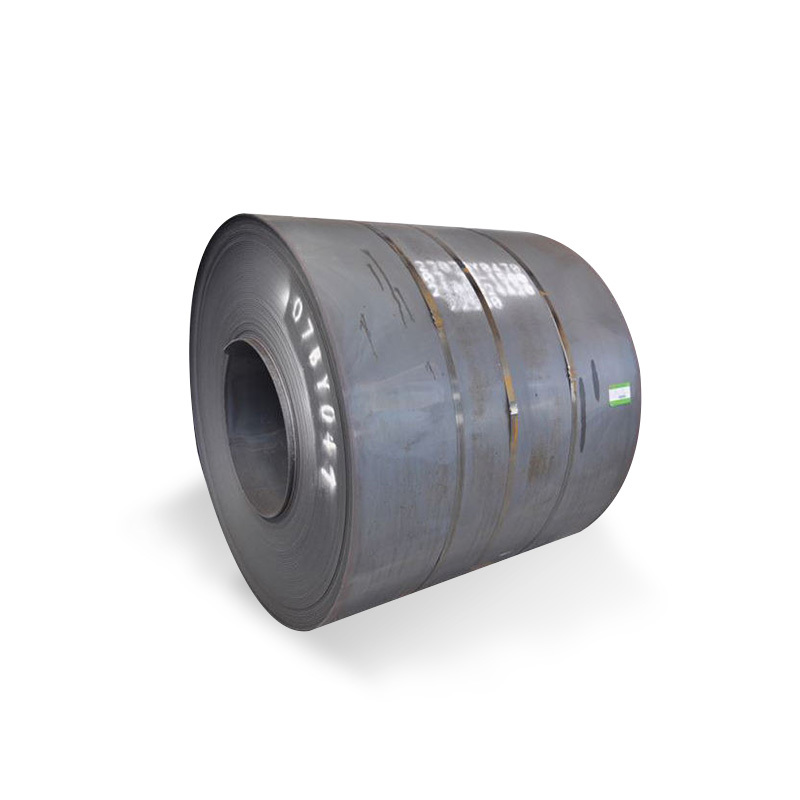

A515 Pressure Vessel Carbon Steel Coil

Designed specifically for welding, A515 is ideal for fabricators and manufacturers who need a material that can withstand extreme heat and pressure. Its unique composition gives it excellent weldability, ensuring your project maintains structural integrity even in the most challenging conditions. Whether you are building a new pressure vessel or maintaining an existing system, A515 provides the durability and performance you need.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

A515 Pressure Vessel Carbon Steel Coil Description

Introducing A515 Carbon Steel Plate - The ultimate solution for high temperature applications in boilers and pressure vessels. Designed to meet the stringent standards of ASME SA-515, A515 is a premium carbon steel that excels in demanding environments, ensuring your operations are safe and reliable.This standard specification is recognized worldwide for its quality and consistency, making it a reliable choice for engineers and industry professionals. A515 is available in a variety of thicknesses and sizes, providing flexibility in design and application. Its versatility makes it suitable for use in a variety of industries such as power generation, petrochemical and manufacturing.In addition to its excellent mechanical properties, A515 also has excellent resistance to thermal fatigue and stress, ensuring long service life and reducing the risk of failure. This makes it a valuable asset in high temperature service applications where safety and efficiency are paramount.

Product Parameters

Product Name	A515 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A515	C	Mn ≥	Si	P	S
Grade 60	0.24-0.31	0.98	0.13-0.45	0.035	0.035
Grade 65	0.28-0.33	0.98	0.13-0.45	0.035	0.035
Grade 70	0.31-0.35	1.3	0.13-0.45	0.035	0.035

Mechanical Properties

A515	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation Rate And 2 and (50mm) min.	Impact Test Temperature (°C)
Grade 60	415-550	220	25	-20,40,-60
Grade 65	450-585	240	23	-20,40,-60
Grade 70	485-620	260	21	-20,40,-60

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A515 boiler vessel plate is mainly used for medium and high temperature welding boiler and other pressure vessel equipment.

Equivalent Material

ASTM A515	National Standard GB	Japanese standard JIS	German Standard DIN	Legal standard AFNOR	Conspire UNI	English standard BS
Level 60	GB713 20g	JIS G3103 SB410	DIN 1715 1.0425	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400
Level 65	GB713 22g	JIS G3103 SB450	DIN 1715 1.0435	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400
Level 70	-	JIS G3103 SB480	DIN 1715 1.0844	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400
