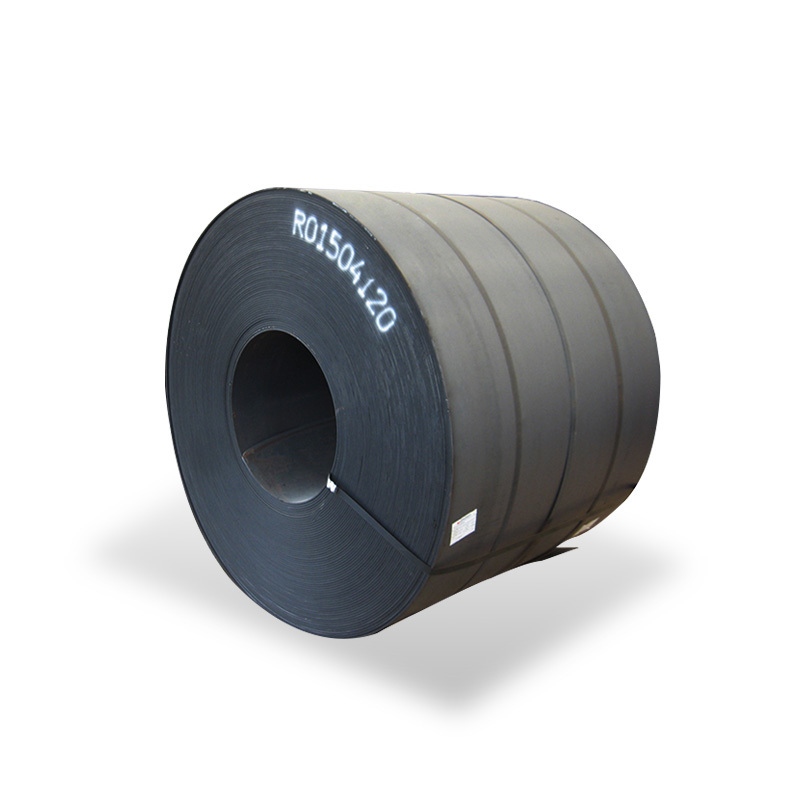

A516 Pressure Vessel Carbon Steel Coil

Designed to withstand harsh environments, A516 steel coils are ideal for pressure vessels, boilers and other critical applications where strength and resilience are critical. Its superior mechanical properties enable it to function effectively under pressure, while its excellent weldability ensures it can be easily formed into complex shapes and structures.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

A516 Pressure Vessel Carbon Steel Coil Description

One of the outstanding features of A516 marine steel coil is its versatility. It is available in a variety of grades, including 60, 65 and 70, to meet a wide range of specifications and requirements. Whether you are in the oil and gas industry, power generation or manufacturing, this steel coil can provide you with the reliability you need to keep your operations running smoothly.In addition, A516 steel coil performs well in low to medium temperature applications and is suitable for a wide range of environments. Its impact and corrosion resistance ensures that it maintains its integrity over time, reducing the need for frequent replacement and maintenance.In addition to its outstanding performance characteristics, A516 Marine Steel Coil is manufactured using stringent quality control measures to ensure that each coil meets the highest industry standards. This commitment to quality means you can be confident that the product you invest in will provide consistent results.

Product Parameters

Product Name	A516 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A516	C Thickness (mm)				Mn Thickness (mm)		Si	P	S
	6-12.5 mm	12.5-25 mm	25-50 mm	> 50 mm	≤ 12.5 mm	> 12.5 mm
Level 55	0.18	0.20	0.22	0.25	0.55-0.98	0.60-1.30	0.13-0.45	0.035	0.035
Level 60	0.21	0.23	0.23	0.25	0.6-0.9	0.80-1.20	0.13-0.45	0.035	0.035
Level 65	0.24	0.26	0.26	0.28	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035
Level 70	0.27	0.28	0.28	0.3	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035

Mechanical Properties

ASTM A516	Tensile Strength	Yield	Lower Limit of Elongation (%)
	(MPa)	(MPa)	Gauge Length 50 mm	Gauge Length 200 mm
Level 55	380-515	205	27	23
Level 60	415-550	220	25	21
Level 65	450-585	240	23	19
Level 70	485-620	260	21	17

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A516 boiler vessel plates are used in the manufacture of gas pressure vessels (liquefied petroleum gas, butane and propane tanks), steam boiler parts, compressors, etc.

Equivalent Material

American Standard		German Standard	European Standard		English Standard
ASTM	ASME	DIN 17155	EN 10028	Material No.	BS1501
Level 60	SA516 Gr.60	HII	P265GH	1.0425	161 430A
Level 65	SA516 Gr.65	17Mn4	P295GH	1.0481	-
Level 70	SA516 Gr.70	-	P355GH	-	224-490 A&B
