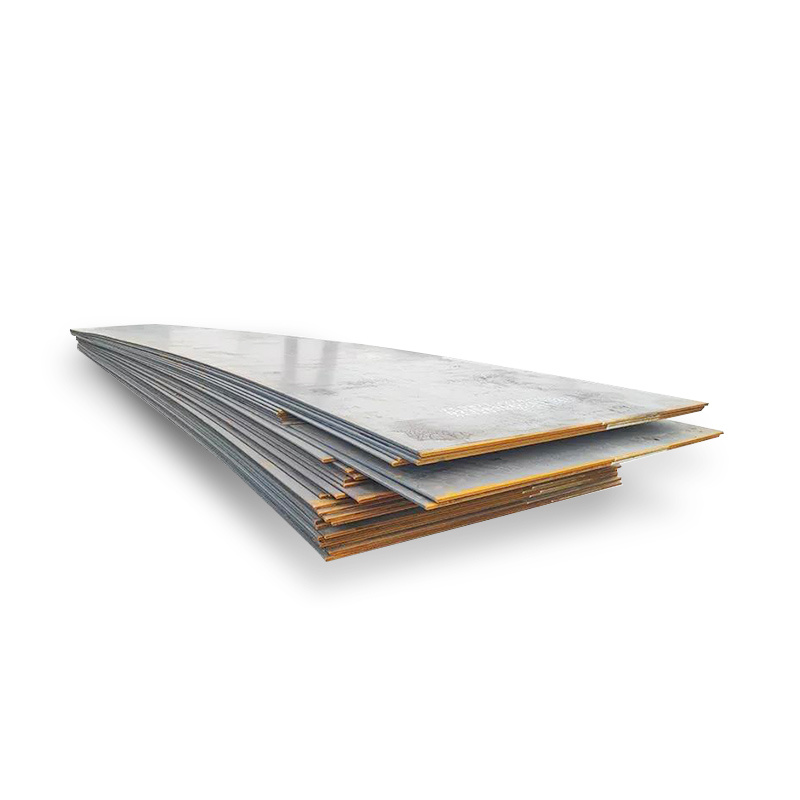

A516 Pressure Vessel Steel Plate

Known for its superior strength and durability, ASTM A516 ensures your vessels can withstand the rigors of harsh environments. With its excellent weldability and formability, this steel plate is easy to fabricate, allowing manufacturers to create complex shapes and structures without compromising quality. Whether you are building a pressure vessel, storage tank, or heat exchanger, ASTM A516 provides the reliability and performance you need.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A516 Pressure Vessel Steel Plate Description

One of the standout features of ASTM A516 is its ability to maintain integrity under harsh conditions. This steel plate is specially formulated to resist cracking and deformation, ensuring your equipment operates safely and efficiently. Its low-temperature impact properties make it particularly suitable for applications in industries such as oil and gas, power generation, and chemical processing.ASTM A516 is available in a variety of grades that can be customized to your specific project requirements. Each grade offers unique properties, allowing you to select the perfect option for your application. Combining strength, versatility, and corrosion resistance, ASTM A516 is the preferred choice for engineers and manufacturers seeking a reliable project material.In summary, ASTM A516 vessel steel plate is a premium product that provides excellent performance in low to medium temperature applications. Invest in ASTM A516 to ensure quality and safety, and to ensure the longevity and efficiency of your pressure vessel and boiler systems. Choose ASTM A516 for your next project and experience the difference in quality and reliability.

Product Parameters

Product Name	A516 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A516	C Thickness (mm)				Mn Thickness (mm)		Si	P	S
A516	6-12.5 mm	12.5-25 mm	25-50 mm	> 50 mm	≤ 12.5 mm	> 12.5 mm	Si	P	S
Level 55	0.18	0.20	0.22	0.25	0.55-0.98	0.60-1.30	0.13-0.45	0.035	0.035
Level 60	0.21	0.23	0.23	0.25	0.6-0.9	0.80-1.20	0.13-0.45	0.035	0.035
Level 65	0.24	0.26	0.26	0.28	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035
Level 70	0.27	0.28	0.28	0.3	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035

Mechanical Properties

ASTM A516	Tensile Strength	Yield	Lower limit of Elongation (%)
ASTM A516	(MPa)	(MPa)	Gauge Length 50mm	Gauge Length 200mm
Level 55	380-515	205	27	23
Level 60	415-550	220	25	21
Level 65	450-585	240	23	19
Level 70	485-620	260	21	17

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A516 boiler vessel plates are used in the manufacture of gas pressure vessels (liquefied petroleum gas, butane and propane tanks), steam boiler parts, compressors, etc.

Equivalent Material

American Standard		German Standard	European Standard		English Standard
ASTM	ASME	DIN 17155	EN 10028	Material No.	BS1501
Level 60	SA516 Gr.60	HII	P265GH	1.0425	161 430A
Level 65	SA516 Gr.65	17Mn4	P295GH	1.0481	-
Level 70	SA516 Gr.70	-	P355GH	-	224-490 A&B
