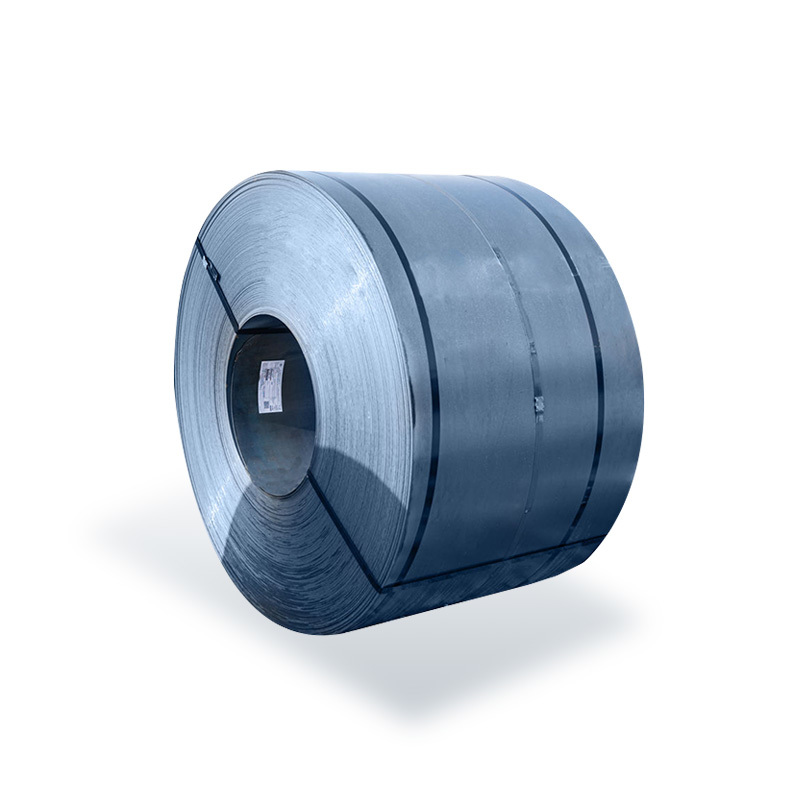

A537 Pressure Vessel Carbon Steel Coil

Introducing A537 Pressure Vessel Steel Coil - the premium solution for your pressure vessel fabrication needs. This high-quality steel coil is engineered from heat-treated carbon-manganese-silicon steel to ensure exceptional strength and durability. Designed to meet the rigorous demands of pressure vessel applications, A537 Steel Coil is ideal for industries such as oil and gas, chemical processing, and power generation.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

A537 Pressure Vessel Carbon Steel Coil Description

A537 Steel Coil is available in three different grades: Grade 1, Grade 2, and Grade 3. Each grade is tailored to meet different specifications and performance requirements, allowing you to choose the best option for your project. Grade 1 offers excellent toughness and weldability for medium-pressure applications. Grade 2 is stronger and well suited for high-pressure environments, while Grade 3 is designed for the harshest conditions with excellent resistance to stress and corrosion.Our A537 Pressure Vessel Steel Coil not only offers superior performance, but also high reliability. The heat treatment process enhances the material’s mechanical properties, ensuring it can withstand extreme temperatures and pressures without compromising integrity. This makes it a reliable choice for engineers and manufacturers who prioritize safety and quality in their projects.

Product Parameters

Product Name	A537 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Standard	Thickness (mm)	C	Si	Mn	P	S	Cu	Ni	Cr	Mo
A537	≤ 40 mm	0.24	0.15-0.50	0.70-1.35	0.035	0.035	0.35	0.25	0.25	0.08
	> 40 mm			1.00-1.60

Mechanical Properties

A537	Thickness mm	Yield Mpa	Tensile Strength Mpa	Elongation %
Level 1	≤ 65	345	485-620	22
	65-100	310	450-585	-
	100-150	-	-	18
Level 2	≤ 65	415	550-690	22
	65-100	380	515-655	20
	100-150	315	485-620	-
Level 3	≤ 65	380	550-690	22
	66-100	345	515-655	20
	101-150	275	485-620	-

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A537 boiler vessel plate is a steel plate used when the yield strength and tensile strength of ASTM A516 cannot meet the requirements of pressure equipment such as boilers and pressure vessels in the oil, natural gas, and petroleum industries. ASTM A537 boiler vessel plate has good notch toughness, which is widely used in API 650 and API 620 storage tanks, medium and low temperature pressure vessels, etc.
