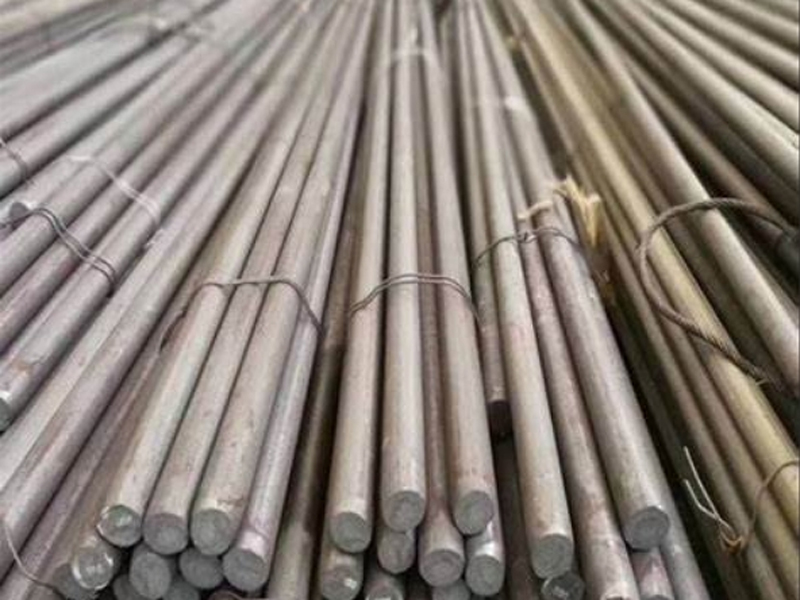

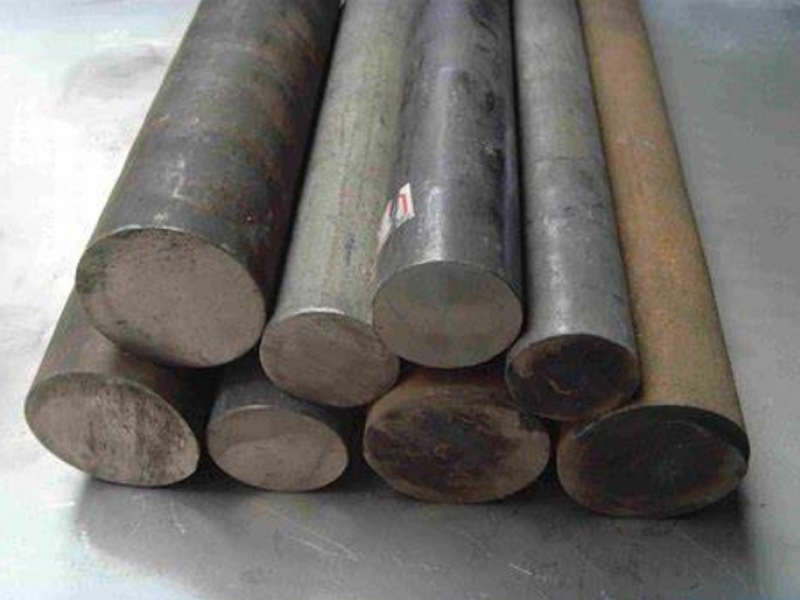

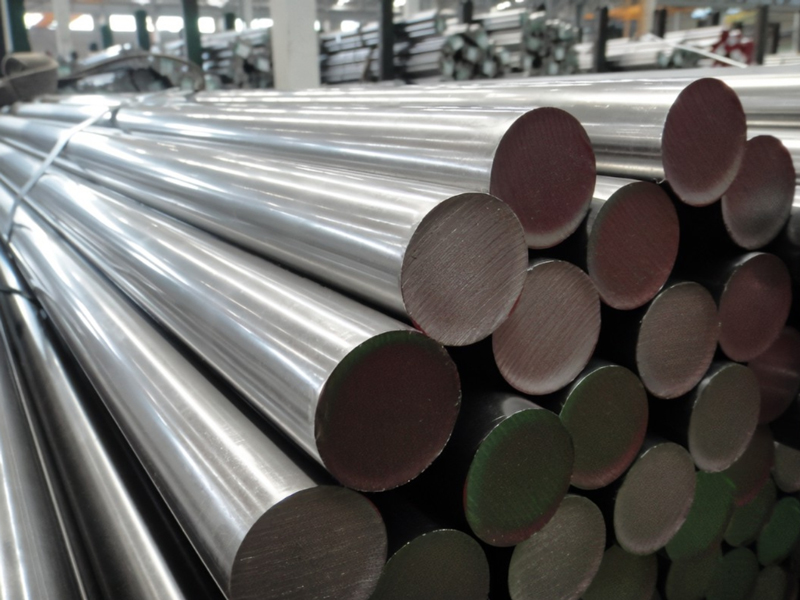

AISI/SAE 1045 C45 Round Steel Bar Description
AISI 1045 steel is recognized for its good weldability, machinability, and high strength and impact properties in the normalized or hot-rolled condition. This medium carbon steel is engineered to perform effectively in applications requiring enhanced strength and hardness. Notably, it boasts excellent size accuracy, concentricity, and straightness, which collectively reduce wear in high-speed applications. AISI 1045 can be shaped into turned, ground, and polished bars that can be machined asymmetrically with minimal distortion. These bars are commonly utilized in the production of gears, shafts, axles, bolts, studs, and machine parts.
Product Parameters
| Product Name | AISI/SAE 1045 C45 Round Steel Bar | |||
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
| Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm | |||
| Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm-17mm | |||
| Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
| Length | 1-6meters, Size Accept Custom | |||
| Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar |
6-50.8 |
| Hot Rolling Square Bar |
21-54 |
Cold Rolling Hexagon Bar |
9.5-65 |
|
| Cold Rolling Round bar | 6-101.6 | Forged Rebar |
200-1000 |
|
| Surface Process | Bright, Polished, Black | |||
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
| Scope of Application | 1045 steel is widely used in machining, automobile manufacturing, aerospace and other fields. | |||
Chemical Composition
|
Grade |
Mn |
S |
C |
P |
Si |
Cr |
Ni |
|
AISI 1045 |
0.5-0.8 |
0.035 |
0.5-0.42 |
0.035 |
0.17-0.37 |
0.25 |
0.3 |
Mechanical Properties
|
Grade |
Tensile Strength (Ksi)min |
Elongation(%in50mm)min |
Yield Strength 0.2%Proof(ksi)min |
Hardness |
|
AISI 1045 |
600 |
40 |
355 |
229 |
