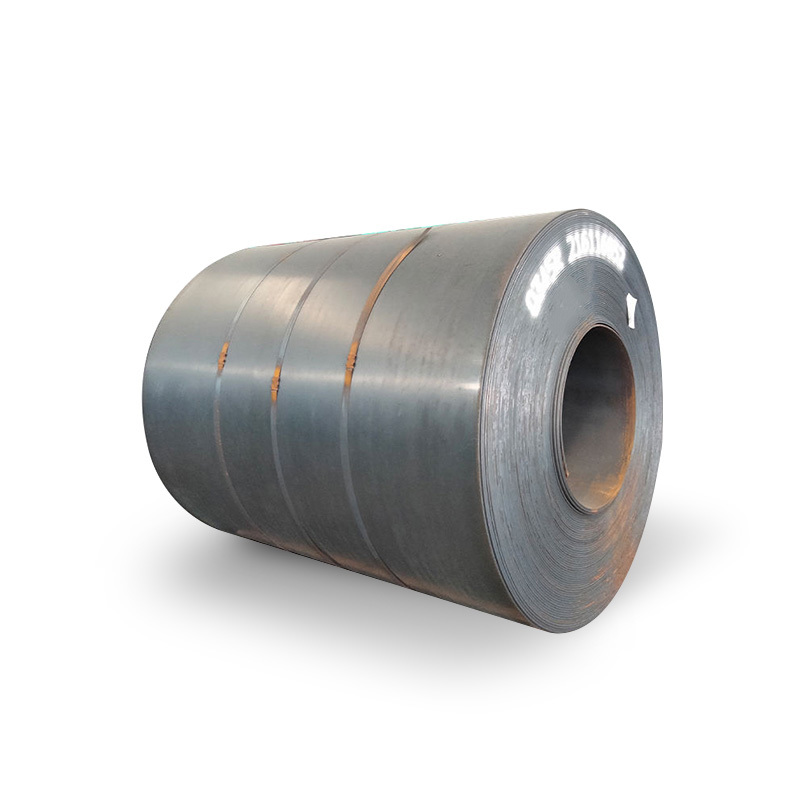

API Spec 5L Pipeline Steel Coil

Introducing API Spec 5L Steel Pipe - the industry standard for pipeline transportation in the oil and gas industry. Designed to meet the stringent demands of modern energy infrastructure, API Spec 5L sets the benchmark for quality and reliability in seamless and welded steel pipe.


    Picture Name

    API Spec 5L Pipeline Steel Coil Description

    This international standard outlines the manufacturing requirements for two different product specification grades: PSL 1 and PSL 2. Each grade is carefully crafted to ensure optimal performance under different conditions, making it suitable for a wide range of applications in pipeline systems. Whether you are transporting natural gas, crude oil or other hydrocarbons, API Spec 5L pipe provides the durability and strength needed to withstand the pressures of the industry.PSL 1 pipes are designed for general use, providing a reliable solution for standard applications. In contrast, PSL 2 pipes are designed for more demanding environments, with enhanced mechanical properties and more stringent testing requirements. This ensures they can withstand higher pressures and more corrosive substances, making them ideal for challenging piping projects.Our API Spec 5L steel pipes are manufactured using advanced technology and high-quality materials to ensure compliance with international standards and regulations. Each pipe is rigorously tested and inspected to guarantee its integrity and performance, giving operators and engineers peace of mind.In a world where safety and efficiency are critical, choosing API Spec 5L steel pipes means investing in products that meet the highest industry standards. With a proven track record in the oil and gas sector, these pipes are a reliable choice for pipeline transportation systems around the world. Improve project reliability and performance with API Spec 5L - quality combined with innovation in piping solutions.

    Product Parameters

    Product Name

    API Spec 5L Pipeline Steel Coil

    Production Process

    Hot Rolling, Cold Rolling

    Material Standards

    AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

    Width

    45mm-2200mm

    Length

    Custom Size

    Thickness

    Hot Rolling: 2.75mm-100mm
    Cold Rolling: 0.2mm-3mm

    Delivery Conditions

    Rolling, Annealing, Quenching, Tempered or Standard

    Surface Process

    Ordinary, Wire Drawing, Laminated Film



    Chemical Composition

    API Spec 5L PSL 1

    Brand

    C

    Mn

    P

    S



    B

    0.28

    1.20

    0.030

    0.030



    X42

    0.28

    1.30

    0.030

    0.030



    X46

    0.28

    1.40

    0.030

    0.030



    X52

    0.28

    1.40

    0.030

    0.030

    API Spec 5L PSL 2

    B

    0.24

    1.20

    0.025

    0.015



    X42

    0.24

    1.30

    0.025

    0.015



    X46

    0.24

    1.40

    0.025

    0.015



    X52

    0.24

    1.40

    0.025

    0.015

    Mechanical Properties

    Standard

    Brand

    Yield Strength (MPa)

    Tensile Strength (MPa)

    API Spec 5L PSL1

    A25

    172

    310



    A

    207

    331



    B

    241

    414



    X42

    290

    414



    X46

    317

    434



    X52

    359

    455



    X56

    386

    490



    X60

    414

    517



    X65

    448

    531



    X70

    483

    565

    API Spec 5L PSL2

    B

    290-496

    414-758



    X42

    317-524

    434-758



    X46

    359-531

    455-758



    X52

    386-544

    490-758



    X56

    414-565

    517-758



    X60

    448-600

    531-758



    X65

    483-621

    565-758



    X70

    552-690

    621-827

    Equivalent Material

    Materials No.

    European Standard EN 10208-2

    German Standard DIN 17172

    API 5L

    1.0457

    L 245 NB

    StE 240.7

    Gr.B

    1.0484

    L 290 NB

    StE 290.7

    X42

    1.0582

    L 360 NB

    StE​​​​​​​ 360.7

    X52

    1.8972

    L 415 NB

    StE​​​​​​​ 415.7

    X60

    1.0418

    L 245 MB

    StE​​​​​​​ 240.7 TM

    Gr.B

    1.0429

    L 290 MB

    StE​​​​​​​ 290.7 TM

    X42

    1.0578

    L 360 MB

    StE​​​​​​​ 360.7 TM

    X52

    1.8973

    L 415 MB

    StE​​​​​​​ 415.7 TM

    X60

    1.8975

    L 450 MB

    StE​​​​​​​ 445.7 TM

    X65

    1.8977

    L 485 MB

    StE​​​​​​​ 480.7 TM

    X70

    Scope of Application

    API Spec 5L specifies the manufacture of two product levels (PSL1 and PSL2). PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.
