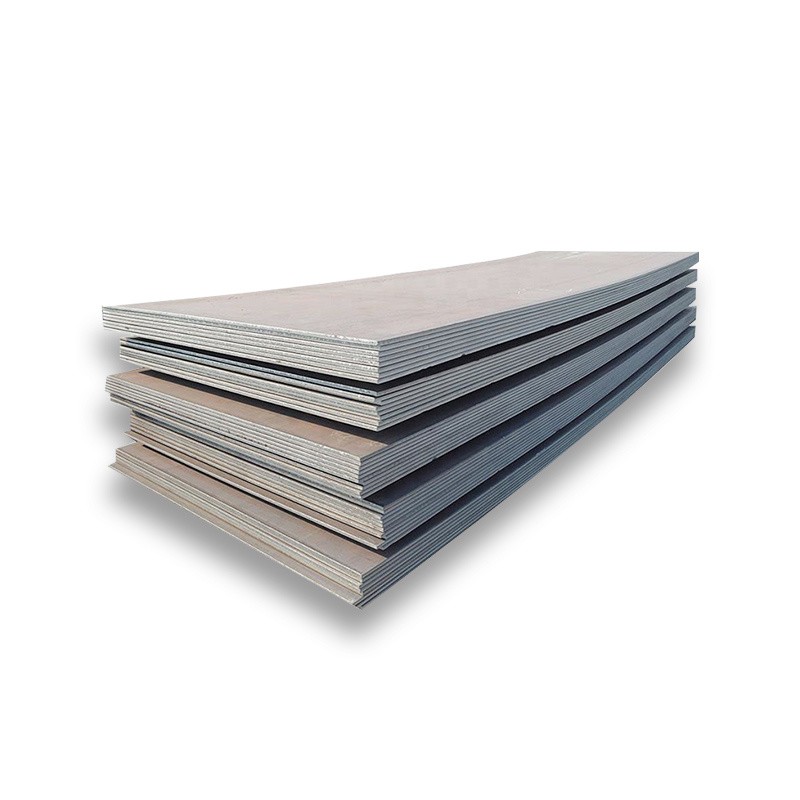

API Spec 5L Pipeline Steel Coil Steel Plate

Introducing API Spec 5L Steel Pipe - the industry standard for pipeline transportation systems in the oil and gas industry. As the cornerstone of modern infrastructure, these pipes are designed to meet the industry’s stringent requirements to ensure the safe, reliable and efficient transportation of hydrocarbons over long distances.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

API Spec 5L Pipeline Steel Coil Steel Plate Description

API Spec 5L is an internationally recognized standard that specifies the manufacturing requirements for two different product specification levels: PSL 1 and PSL 2. Each level is carefully designed to meet different operating conditions and environmental challenges, providing flexibility and adaptability for a variety of applications. PSL 1 is ideal for standard applications, while PSL 2 offers enhanced mechanical properties and additional testing requirements, making it suitable for more demanding environments.Our seamless and welded steel pipes are made from premium materials that ensure exceptional strength and durability. They are rigorously tested to meet or exceed the stringent standards set forth by API Spec 5L, guaranteeing they can withstand the pressures and stresses encountered in pipeline transportation. Whether you are building a new pipeline or maintaining an existing system, our steel pipes provide the reliability you need to keep your operations running smoothly.In addition to their rugged performance, API Spec 5L steel pipes are designed with sustainability in mind. By facilitating the efficient transportation of oil and gas, they play a vital role in reducing environmental impact and improving energy efficiency.

Product Parameters

Product Name	API Spec 5L Pipeline Steel Coil Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

API Spec 5L PSL 1	Brand	C	Mn	P	S
	B	≤ 0.28	≤ 1.20	≤ 0.030	≤ 0.030
	X42	≤ 0.28	≤ 1.30	≤ 0.030	≤ 0.030
	X46	≤ 0.28	≤ 1.40	≤ 0.030	≤ 0.030
	X52	≤ 0.28	≤ 1.40	≤ 0.030	≤ 0.030
API Spec 5L PSL 2	B	≤ 0.24	≤ 1.20	≤ 0.025	≤ 0.015
	X42	≤ 0.24	≤ 1.30	≤ 0.025	≤ 0.015
	X46	≤ 0.24	≤ 1.40	≤ 0.025	≤ 0.015
	X52	≤ 0.24	≤ 1.40	≤ 0.025	≤ 0.015

Mechanical Properties

Standard	Brand	Yield Strength (MPa)	Tensile Strength (MPa)
API Spec 5L PSL 1	A25	172	310
	A	207	331
	B	241	414
	X42	290	414
	X46	317	434
	X52	359	455
	X56	386	490
	X60	414	517
	X65	448	531
	X70	483	565
API Spec 5L PSL 2	B	290-496	414-758
	X42	317-524	434-758
	X46	359-531	455-758
	X52	386-544	490-758
	X56	414-565	517-758
	X60	448-600	531-758
	X65	483-621	565-758
	X70	552-690	621-827

Scope of Application

API Spec 5L specifies the manufacture of two product levels (PSL1 and PSL2). PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.

Equivalent Material

Materials No.	European Standard EN 10208-2	German Standard DIN 17172	API 5L
1.0457	L 245 NB	StE 240.7	Gr.B
1.0484	L 290 NB	StE 290.7	X42
1.0582	L 360 NB	StE 360.7	X52
1.8972	L 415 NB	StE 415.7	X60
1.0418	L 245 MB	StE 240.7 TM	Gr.B
1.0429	L 290 MB	StE 290.7 TM	X42
1.0578	L 360 MB	StE 360.7 TM	X52
1.8973	L 415 MB	StE 415.7 TM	X60
1.8975	L 450 MB	StE 445.7 TM	X65
1.8977	L 485 MB	StE 480.7 TM	X70
