Benchmark A36 Hot Rolled Steel Plate

Hot Rolled Steel A36 (ASTM A36) is one of the most widely accessible grades of hot-rolled steel, offering favorable overall mechanical properties, ease of fabrication, and the ability to be formed when hot or cold. The hot rolling process results in a rougher surface compared to cold-rolled steel. Additionally, the yield strength of ASTM A36 is lower than that of C1018.


    Picture Name

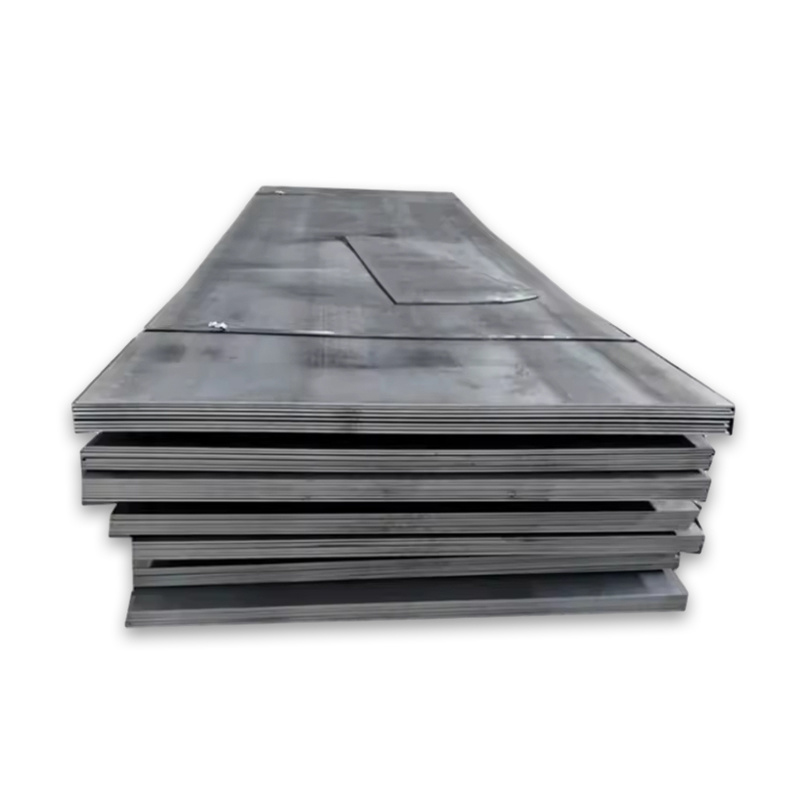

    A36 Hot Rolled Steel Plate description

    A36 hot rolled steel plates are highly versatile and suitable for a wide range of processing techniques. They feature a rough, blue-grey finish, with dull rounded edges and imprecise dimensions along their length. A36 material is classified as low carbon steel, commonly known as mild steel, offering longevity and durability. Typical applications encompass base plates, brackets, gussets, and trailer fabrication. ASTM A36 / A36M-08 serves as the standard specification for carbon structural steel.

    Product Parameters

    Product  Name A36 Hot Rolled Steel Plate
    Type Hot Rolling, Cold Rolling
    Thickness 0.1mm-400mm
    Length 1m-12m, or Customized Size
    Width 100mm-3000mm
    Standard AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE,  etc.
    Scope of Application ● Trailers ● Walkways ● Ramps ● Structural supports ● General fabrication
    Certificate ISO, SGS, BV, etc.
    Production Technology Rolling, Annealing, Quenching, Tempered or Standard
    Edge Processing Ordinary, Wire Drawing, Laminated Film

    Chemical Composition

    Element Percentage
    C 0.26
    Cu 0.2
    Fe 99
    Mn 0.75
    P 0.04 max
    S 0.05 max

    Mechanical Properties

    Imperial Metric
    Density 0.282 lb/in3 7.8 g/cc
    Ultimate Tensile Strength 58,000psi 400 MPa
    Yield Tensile Strength 47,700psi 315 MPa
    Shear Strength 43,500psi 300 MPa
    Melting Point 2,590 - 2,670°F 1,420 - 1,460°C
