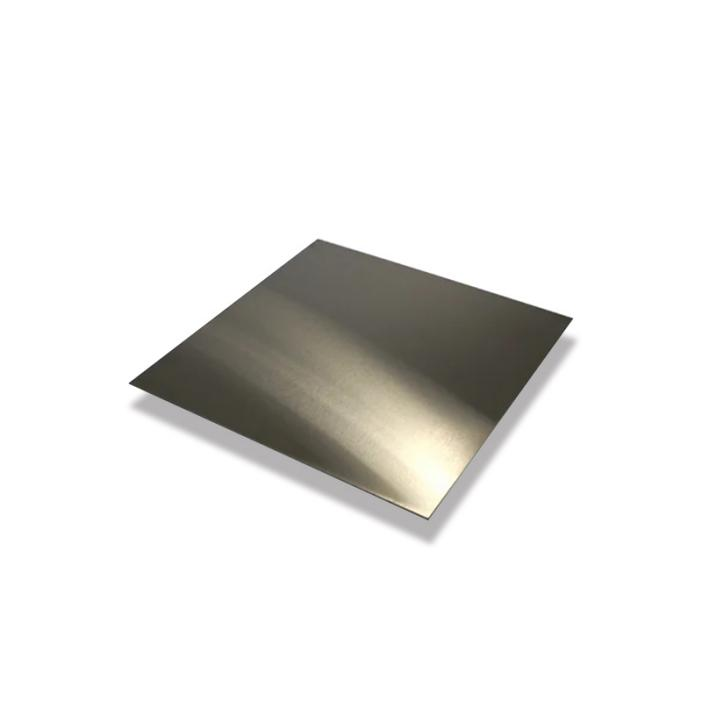

Boutique 2205 Duplex Stainless Steel Plate

2205 Duplex stainless steel alloy is a duplex stainless steel comprising 22% chromium, 2.5% molybdenum, and 4.5% nickel nitrogen alloy. This alloy offers high strength, excellent impact toughness, and superior overall and localized resistance to stress corrosion.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

2205 Duplex Stainless Steel Plate Description

The yield strength of 2205 Duplex stainless steel is more than double that of standard austenitic stainless steel, and it possesses the necessary plastic toughness for shaping. Storage tanks or pressure vessels made of duplex stainless steel can have a wall thickness 30-50% less than those made of commonly used austenitic steel, leading to cost reductions. Additionally, it exhibits excellent localized corrosion resistance, and compared to austenitic stainless steel with similar alloy content, it offers superior resistance to wear corrosion and fatigue corrosion. Under both dynamic and static load conditions, 2205 duplex stainless steel has a higher energy absorption capacity than austenitic stainless steel, providing significant advantages for structural components in coping with emergencies such as collisions and explosions.

Product Parameters

Product Name	2205 Duplex Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely utilized in the high-temperature and electrical industry, medical equipment construction, chemical and food industries, agriculture, ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, as well as in bolts, nuts, springs, and screens, among other applications.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	Mo	S	P
≤ 0.03	≤1.0	≤ 2.0	21.0～23.0	4.5～6.5	2.5～3.5	≤ 0.02	≤ 0.03

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥620	≥450	≥25	≤ 293HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.88	190	13.7	19.0	80
