Cheap 2507 Duplex Stainless Steel Bar

The 2507 duplex stainless steel bar is crafted from a unique ferritic-austenitic duplex stainless steel renowned for its exceptional corrosion resistance. It provides comprehensive protection against point corrosion, crevice corrosion, and uniform corrosion due to the optimal ratio of chromium and molybdenum elements.


    Picture Name

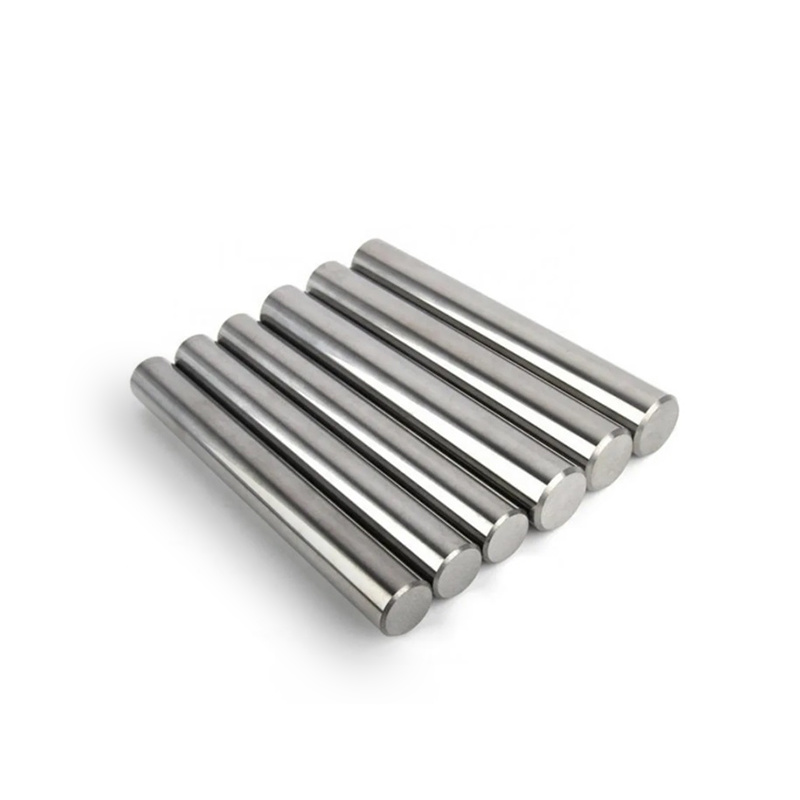

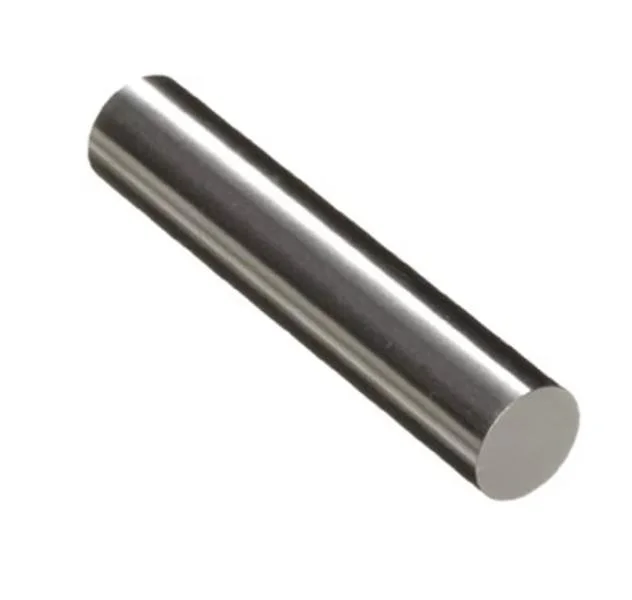

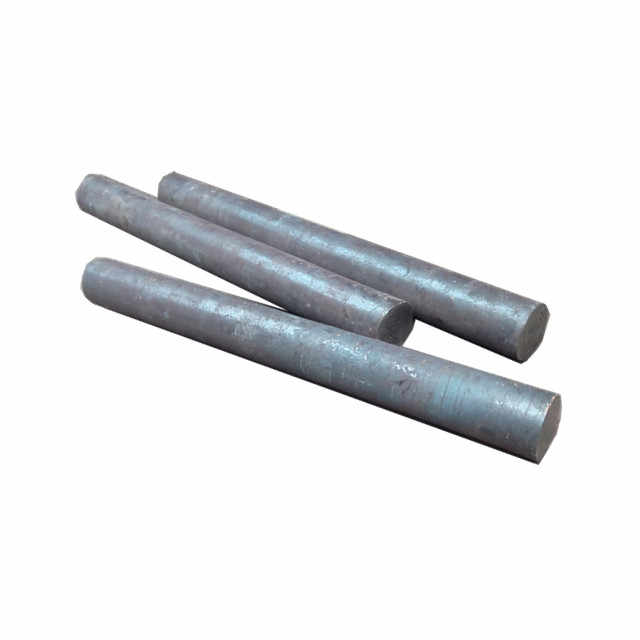

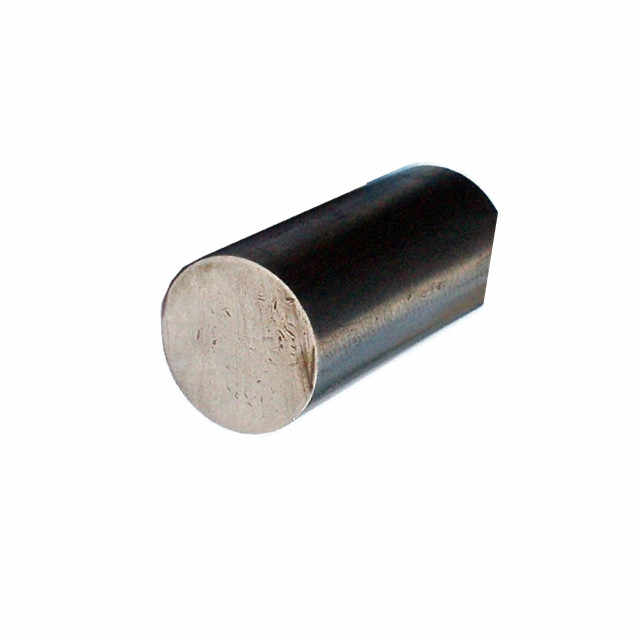

    2507 Duplex Stainless Steel Bar Description

    The 2507 duplex stainless steel bar is crafted from an ultra-duplex stainless steel containing 25% chromium, 4% molybdenum, and 7% nickel. With a high chromium and molybdenum content, 2507 stainless steel exhibits robust corrosion resistance to various acids and exceptional resistance to stress corrosion cracking due to its duplex construction. These bars demonstrate outstanding corrosion resistance in chloride ion-containing environments, making them well-suited for construction and related industries. Additionally, 2507 stainless steel boasts excellent mechanical properties, including high compressive strength, impact strength, and a low coefficient of thermal expansion. As a result, 2507 duplex stainless steel bars are widely utilized in the manufacturing of components for oil and gas, water treatment, fire protection, desalination equipment, mechanical parts, and fuel gas purification equipment.

    Product Parameters

    Product Name 2507 Duplex Stainless Steel Bar
    Type Steel Bar
    Outer Diameter Round Bar 4mm-500mm
    Hexagon Bar 18mm-57mm (11/16″ to 2-3/4″)
    Square Bar 18mm-47mm (11/16″ to 1-3/4″)
    Flat Steel 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
    Length 1-6 meters, Length can be customized
    Standard ASTM, AISI, JIS, GB, DIN, EN, etc.
    Surface Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
    Scope of Application Stainless steel bars are utilized across a diverse range of industries, including shipbuilding, defense, automotive, textiles, paper and pulp, manufacturing, cement, heavy earthmoving equipment, and construction.

    Chemical Composition

    C Si Mn Cr Ni Mo S P
    ≤ 0.03 ≤ 0.8 ≤ 1.2 24.0~26.0 6.0~8.0 3.0~5.0 ≤ 0.02 ≤ 0.035

    Mechanical Properties

    Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
    ≥795 ≥550 ≥15 ≤ 310HB

    Physical Performance

    Density(g/cm³) Modulus of Elasticity(Gpa) Coefficient of Thermal Expansion(10-6/°C) Coefficient of Thermal Conductivity(W/m*K) Resistivity(ΜΩ. cm)
    7.75 200 13.0 17.0 80
