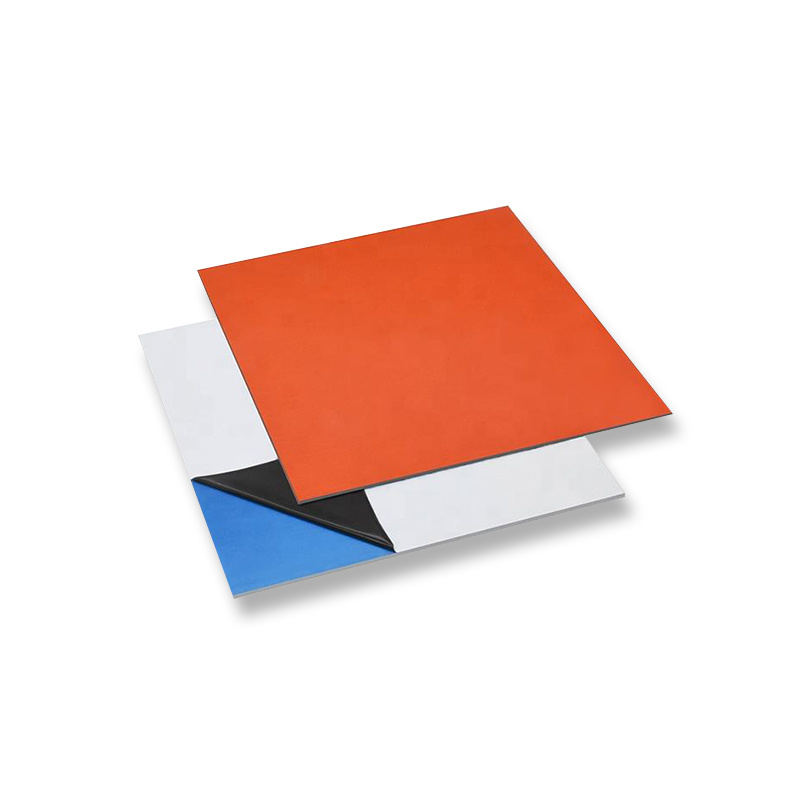

Color Coated Galvanized Steel Sheet PPGI
- Wechat:18365798883
- WhatsApp:+86-18365798883
- E-Mali:admin@sdxyy.cn
Color Coated Galvanized Steel Sheet PPGI Description
The production process begins with meticulous surface preparation, ensuring the substrate is primed for optimal coating adhesion. We then apply one or more liquid coatings using advanced roller coating technology. This innovative approach not only enhances the appearance of the board but also significantly improves its performance characteristics. After the coating is applied, the panels undergo a precise baking and cooling process, resulting in a finish with excellent weather resistance and durability.Our painted galvanized sheets are resistant to the elements and are ideal for a variety of applications including roofing and wall cladding, interior design and furniture manufacturing. PPGI’s superior processing properties make it easy to cut, bend and shape, allowing you to bring your creative vision to life without compromise.One of the outstanding features of our PPGI is its rich color. Whether you prefer classic tones or bright tones, our painted panels can be customized to your specific design requirements. This versatility not only enhances the aesthetic value of your project, but also blends seamlessly into any architectural style.
Product Parameters
|
Product Name |
Color Coated Galvanized Steel Sheet PPGI |
|
Thickness |
0.12mm-1.2mm |
|
Width |
600mm-1250mm |
|
Length |
Support Customization |
|
Color |
According RAL Color Card (Can provide custom pattern) |
|
Paint |
PE, SMP, HDP, PVDF |
|
Primer |
Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer |
|
Coating Thickness |
Top: 11-35μm, Back: 5-14μm |
Color Selection
We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.
Advantages of Color Coated Plate
Custom Colors
You can choose any RAL color, as well as customize the pattern according to your needs. The beautiful surface makes the color coated board decorative. So it can be directly used in many fields.
Tough Soating
Color coated steel plate including PPGL plate PPGI steel, the use of continuous coil coating, the surface luster bright, no cracking, no peeling. In addition, it can keep the color for at least 10 years.
Excellent Mechanical Properties
The color coated plate retains the mechanical properties of the base metal, such as tensile strength. In addition, the application of the coating can protect the surface from rust, thereby extending its service life. Studies have shown that the service life of color-coated steel sheets is 50% longer than that of galvanized steel sheets.
Easy to Use
Different from the coil, the color coated plate is a kind of finished product. This means that it can be directly used in many industries. Considering its light weight, it is easy to carry and install. In addition, due to its aesthetic appearance, no additional decoration is required. Also, less maintenance is required during the service life.
Coating Type
In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester SMP
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.
