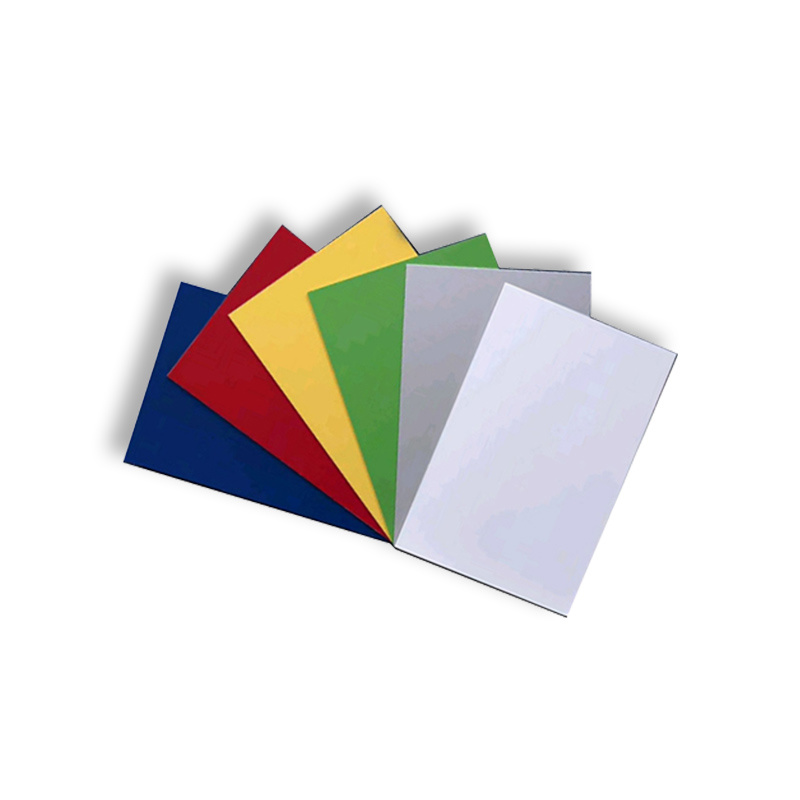

Color Coated Galvalume Steel Sheet PPGL

Introducing our premium Pre-painted Galvanized Steel (PPGL), the perfect solution for your construction and fabrication needs. Designed with durability and aesthetics in mind, our PPGL combines the strength of hot-dip galvanized and electro-galvanized steel with a vibrant protective coating for enhanced functionality and visual appeal.


    Picture Name

    Color Coated Galvalume Steel Sheet PPGL Description

    Our PPGLs are carefully crafted from high-quality substrates to ensure they can withstand the rigors of a wide range of environments. The surface undergoes a thorough pre-treatment process before being applied with one or more layers of liquid coating using a state-of-the-art roller coating method. This innovative approach not only ensures an even surface treatment, but also maximizes adhesion, resulting in a durable product.
    Once coated, the sheets are baked and cooled to create a solid surface with excellent weather resistance. Whether exposed to strong sunlight, heavy rain or extreme temperatures, our PPGL maintains its integrity and color vividness over time. This makes it ideal for roofing, wall cladding and other applications where performance and appearance are critical.

    Product Parameters


    Product Name

    Color Coated Galvalume Steel Sheet PPGL

    Thickness

    0.12mm-1.2mm

    Width

    600mm-1250mm

    Length

    Support Customization

    Color

    According RAL Color Card (Can provide custom pattern)

    Paint

    PE, SMP, HDP, PVDF

    Primer

    Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer

    Coating Thickness

    Top: 11-35μm, Back: 5-14μm

    Color Selection

    We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.WPS图片(1)

    Advantages of Color Coated Plate

    Custom Colors
    You can choose any RAL color, as well as customize the pattern according to your needs. The beautiful surface makes the color coated board decorative. So it can be directly used in many fields.
    Tough Soating
    Color coated steel plate including PPGL plate PPGI steel, the use of continuous coil coating, the surface luster bright, no cracking, no peeling. In addition, it can keep the color for at least 10 years.
    Excellent Mechanical Properties
    The color coated plate retains the mechanical properties of the base metal, such as tensile strength. In addition, the application of the coating can protect the surface from rust, thereby extending its service life. Studies have shown that the service life of color-coated steel sheets is 50% longer than that of galvanized steel sheets.
    Easy to Use
    Different from the coil, the color coated plate is a kind of finished product. This means that it can be directly used in many industries. Considering its light weight, it is easy to carry and install. In addition, due to its aesthetic appearance, no additional decoration is required. Also, less maintenance is required during the service life.

    Coating Type
    In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
    Polyester PE
    Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
    Silicon Modified Polyester SMP
    The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
    High Durability Polyester HDP
    Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
    Polyvinylidene Fluoride PVDF
    Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.
