Color Coated Galvanized Roof Sheet PPGI
- Wechat:18365798883
- WhatsApp:+86-18365798883
- E-Mali:admin@sdxyy.cn

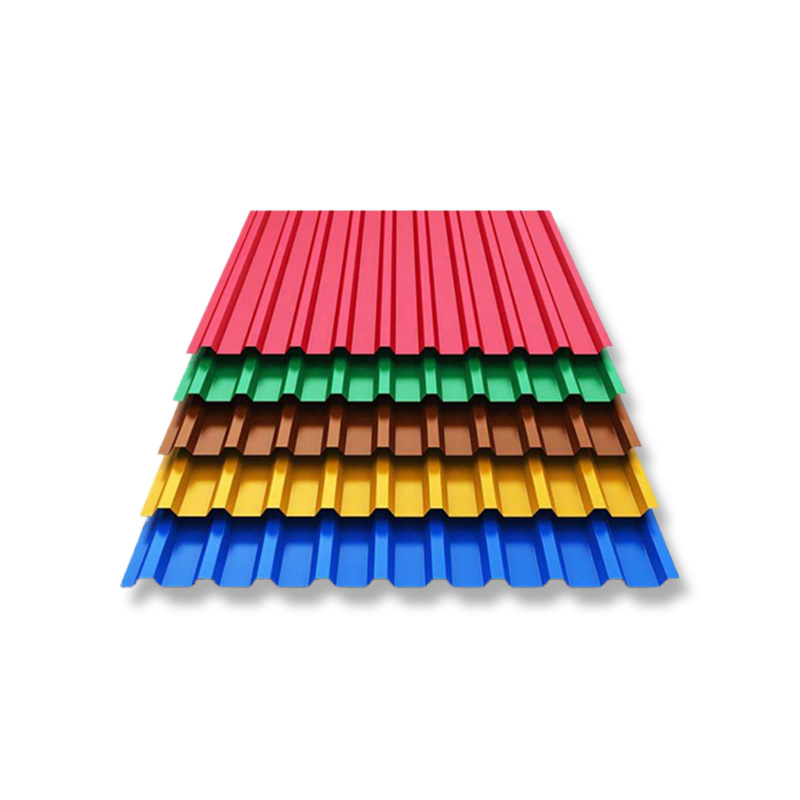

Color Coated Galvanized Roof Sheet PPGI Description
Our PPGI roof panels come in a variety of designs and sizes, ensuring you can find the product that best suits your specific needs. With thickness options ranging from 0.2mm to 0.8mm and widths from 600mm to 1,250mm, you can choose the ideal specification for your project. This versatility makes our panels suitable for a wide range of roof styles, from traditional to contemporary, allowing you to create the look you want.One of the standout features of our PPGI roof panels is the ability to customize colors and patterns. Whether you prefer a classic look or a more modern look, we can customize the panels to your vision. This customization ensures that your roof not only performs its functional purpose, but also complements the overall design of your building.
Product Parameters
|
Product Name |
Color Coated Galvanized Roof Sheet PPGI |
|
Thickness |
0.2mm-0.8mm |
|
Width |
750mm-1500mm |
|
Length |
600mm-1250mm (Common Width: 914mm, 1000mm, 1200mm, 1220mm, etc.) |
|
Color |
According RAL Color Card (Can provide custom pattern) |
|
Shape |
Wavy, Trapezoidal, etc. |
|
Paint |
PE, SMP, HDP, PVDF |
|
Primer |
Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer |
|
Coating Thickness |
Top: 11-35μm, Back: 5-14μm |
Color Selection
We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.
Galvanized color coated roof panels are widely used in commercial, agricultural, industrial and civil buildings. This is because it has many benefits, such:
Long Service Life
The color coated GI roof panel adopts galvanized steel sheet as the base material, which is durable. Several coatings are then applied to enhance its corrosion resistance. Therefore, the service life of PPGI roofing panels will exceed 15 years.
Noise Reduction And Heat Insulation
The profile design of the color galvanized roof can reduce the sound resonance and isolate the noise. In addition, due to its low thermal conductivity, it can help you keep your home cool on hot, sunny days.
Low Installation Cost
PPGI roof panels are lightweight and easy to transport and install. The use of color coated roof panels can shorten the construction period by 40%. In addition, the colored galvanized roof can be recycled, especially for mobile homes. It can reduce your construction costs.
Beautiful Appearance
Galvanized color coated roof panels are rich in color and unique in design, and can be used in a variety of styles. In addition, the painted roof looks great, which means that no surface decoration is required.
Good Drainage Performance
Galvanized color coated roof panel has waterproof function. In rainy areas, the corrugated design can help rainwater gather and run down quickly.
Excellent Safety Performance
PPGI plate retains the mechanical properties of the base metal, such as high tensile strength, great toughness and so on. Not only that, when made into a corrugated roof, it can bear more weight.
Scope of Application
Agricultural Applications: Including but not limited to greenhouses, chicken coops, stables, hay barns and barns
Residential Applications: Including residential houses, simple houses, apartments, towers, garages, storage sheds, etc.
Commercial Applications: For example, factories, warehouses, manufacturing plants, department stores, office buildings, etc.
Public Buildings: Such as cinemas, exhibition halls, gymnasiums, terminal buildings, schools, hospitals, etc.
