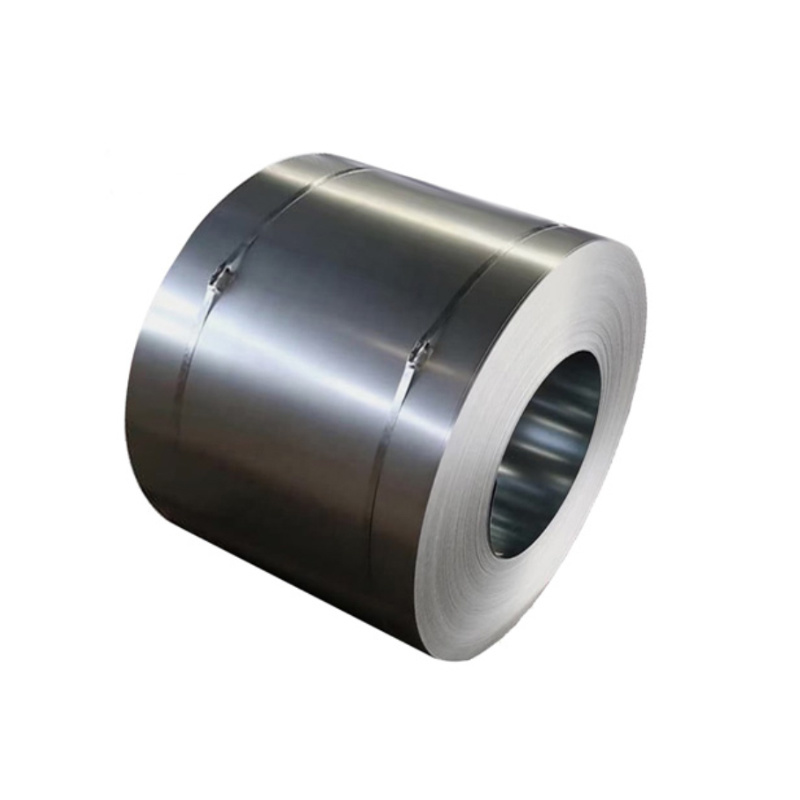

DC01 Cold Rolled Steel Coil

DC01, DC02, DC03, DC04, DC05 and DC06. These high quality steel grades are manufactured according to European standards DIN EN 10130, DIN EN 10209 and DIN 1623 to ensure they meet the stringent requirements of a wide range of industrial applications.


    Picture Name

    DC01 Cold Rolled Steel Coil

    Our cold rolled steel grades are designed to provide superior performance and reliability. Each grade is classified according to the maximum allowable yield strength, allowing you to select the perfect material for your specific needs. Whether you need steel for automotive components, construction or manufacturing, our DC range offers a versatile solution that ensures durability and strength.DC01 is the most commonly used grade, known for its excellent formability and weldability, making it an ideal choice for a wide range of applications. DC02 has a slightly higher yield strength, providing enhanced performance for more demanding projects. For applications requiring higher strength, DC03 and DC04 are the perfect choice, providing excellent mechanical properties without compromising machinability.DC05 and DC06 are designed for specialized applications where high strength and low thickness are critical. Ideal for industries that require lightweight yet strong materials, these grades ensure your products maintain structural integrity while minimizing weight.Our cold rolled steel is not only strong but also precise. The cold rolling process improves the surface finish, providing a smooth and uniform appearance, perfect for aesthetic applications.

    Product Parameters

    Product Name

    DC01 Cold Rolled Steel Coil

    Production Process

    Hot Rolling, Cold Rolling

    Material Standards

    AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

    Width

    45mm-2200mm

    Length

    Custom Size

    Thickness

    Hot Rolling: 2.75mm-100mm
    Cold Rolling: 0.2mm-3mm

    Delivery Conditions

    Rolling, Annealing, Quenching, Tempered or Standard

    Surface Process

    Ordinary, Wire Drawing, Laminated Film

    Chemical Composition

    C: max. 0,08 %

    Mn: max. 0,40 %

    P: max. 0,03 %

    S: max. 0,03 %

    Mechanical Properties

    Steel Grade

    Yield Strength (MPa) min

    Tensile Strength (MPa) min

    Elongation % min

    Old Description

    DC01

    280

    270-410

    28

    St 12-03

    DC03

    240

    270-370

    34

    St 13-03

    DC04

    210

    270-350

    38

    St 14-03

    DC05

    180

    270-330

    40

    St 15-03

    DC06

    170

    270-330

    41

    -

    DC07

    150

    250-310

    44

    -

    Scope of Application

    DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.
    DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.
    DC04 is suitable for high deformation requirements.
    DC05 is a thermal forming grade, it is suitable for higher forming requirements.
    DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.
    DC07, this superior deep drawing quality is suitable for highest deformation requirements.
