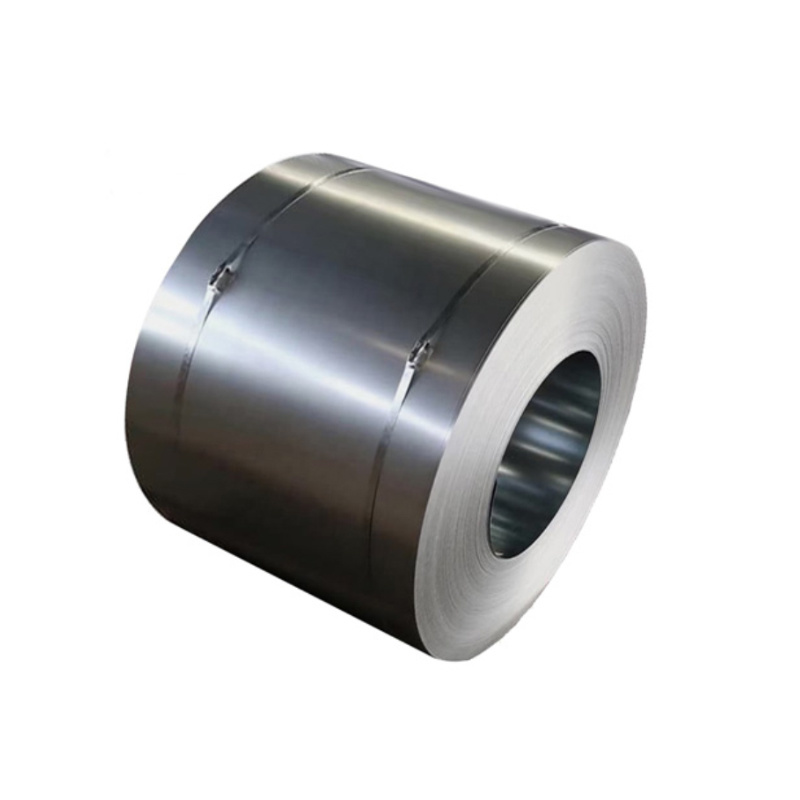

DC01/DC02/DC03/DC04 Cold Rolled Steel Coil
Our cold rolled steel grades are designed to provide superior performance and reliability. Each grade is classified according to maximum allowable yield strength, allowing you to select the perfect material for your specific needs. Whether you need steel for automotive components, construction or manufacturing, our DC range offers versatile solutions that ensure durability and strength.DC01 is the most commonly used grade, known for its excellent formability and weldability, making it an ideal choice for a wide range of applications. DC02 has a slightly higher yield strength, providing enhanced performance for more demanding projects. For applications requiring higher strength, DC03 and DC04 are the perfect choice, providing excellent mechanical properties without compromising machinability.DC05 and DC06 are designed for specialist applications where high strength and low thickness are critical. Ideal for industries that require lightweight yet strong materials, these grades ensure your products maintain structural integrity while minimising weight.
Product Parameters
|
Product Name |
DC01/DC02/DC03/DC04 Cold Rolled Steel Coil |
|
Production Process |
Hot Rolling, Cold Rolling |
|
Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
|
Width |
45mm-2200mm |
|
Length |
Custom Size |
|
Thickness |
Hot Rolling: 2.75mm-100mm |
|
Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
|
Surface Process |
Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
C: max. 0,08 %
Mn: max. 0,40 %
P: max. 0,03 %
S: max. 0,03 %
Mechanical Properties
|
Steel Grade |
Yield Strength (MPa) min |
Tensile Strength (MPa) min |
Elongation % min |
Old Description |
|
DC01 |
≤ 280 |
270-410 |
28 |
St 12-03 |
|
DC03 |
≤ 240 |
270-370 |
34 |
St 13-03 |
|
DC04 |
≤ 210 |
270-350 |
38 |
St 14-03 |
|
DC05 |
≤ 180 |
270-330 |
40 |
St 15-03 |
|
DC06 |
≤ 170 |
270-330 |
41 |
- |
|
DC07 |
≤ 150 |
250-310 |
44 |
- |
Scope of Application
DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.
DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.
DC04 is suitable for high deformation requirements.
DC05 is a thermal forming grade, it is suitable for higher forming requirements.
DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.
DC07, this superior deep drawing quality is suitable for highest deformation requirements.
