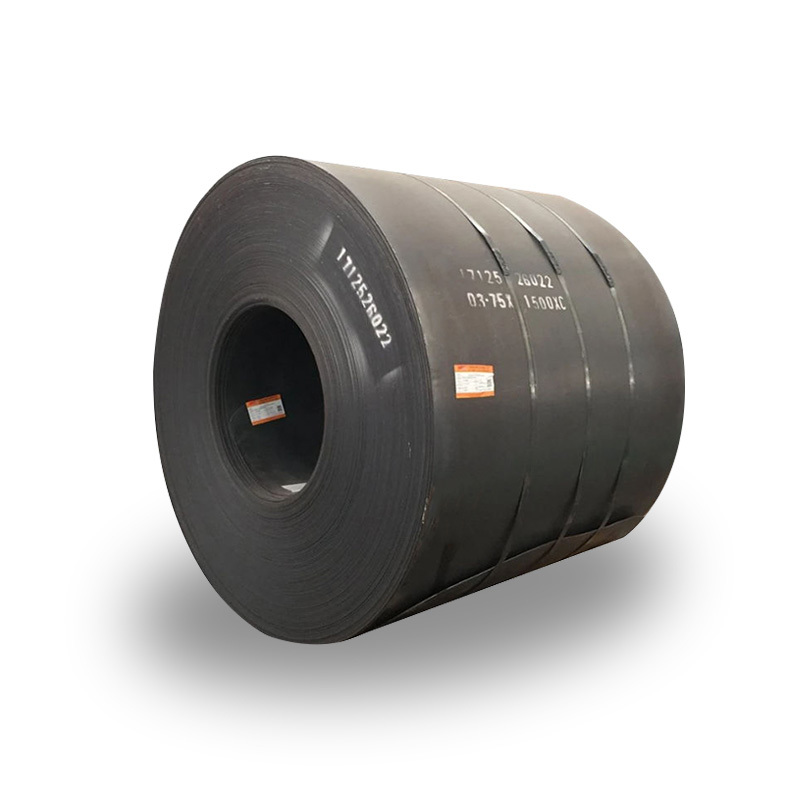

DIN 17100 ST37/ST12/ST14/ST52 Carbon Steel Coil

DIN 17100 ST37 Coil is designed to provide exceptional strength and durability, making it an ideal material for structural components in building projects. Its excellent weldability and formability make it easy to process, ensuring it can be tailored to specific project requirements. Whether you are constructing a building, bridge or machinery, ST37 Coil will provide the performance you need to ensure the integrity and longevity of your structure.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

DIN 17100 ST37/ST52 Carbon Steel Coil Description

In addition to its use in the construction industry, ST37 coils are also widely used in the manufacturing industry. Its robust nature makes it suitable for the production of a wide range of mechanical parts, from gears and shafts to frames and brackets. The coil’s ability to withstand stress and strain ensures that parts made from it will withstand the rigors of daily operation, giving peace of mind to manufacturers and end users alike.Additionally, DIN 17100 ST37 coils are available in a variety of thicknesses and widths to be customized to your specific project needs. ST37 coils combine quality, versatility, and reliability, making them the preferred choice of professionals across multiple industries.Elevate your projects with DIN 17100 ST37 Coils - Strength meets versatility. Experience the difference that high-quality carbon structural steel can make in your construction and fabrication work. Choose ST37 for a reliable solution that will stand the test of time.

Product Parameters

Product Name	DIN 17100 ST37/ST52 Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Brand	C					P	S	N
	≤ 16mm	16-32mm	32-40mm	40-63mm	63-100mm
St37-2	0.17	0.20	0.20	0.20	0.20	0.050	0.050	0.009
USt37-2	0.17	0.20	0.20	0.20	0.20	0.050	0.050	0.007
RSt37-2	0.17	0.17	0.17	0.20	0.20	0.050	0.050	0.009
St37-3	0.17	0.17	0.17	0.17	0.17	0.040	0.040	-
St52-3	0.204	0.204	0.22	0.22	0.22	0.040	0.040	-

ST12 Chemical Elements	C	Mn	P	S	Al
Percentage	≤ 0.10	≤ 0.50	≤ 0.035	≤ 0.035	≥ 0.020

Steel grade	Chemical Composition %
	C	Mn	p	S	Alta	Ti b
DC04 (St14, St15)	≤ 0.08	≤ 0.40	≤ 0.025	≤ 0.020	≥ 0.020	-

Mechanical Properties

Brand	Tensile Strength		Yield Strength
	< 3 mm	3-100 mm	≤ 16 mm	16-40 mm	40-63 mm	63-80 mm	80-100 mm
St37-2	360-510	340-470	235	225	215	205	195
USt37-2	-	-	-	-	-	-	-
RSt37-2	-	-	235	225	215	215	215
St37-3	-	-	-	-	-	-	-
St52-3	510-680	490-630	365	355	345	335	325

ST12 Mechanical Properties	Tensile Strength	Yield Strength	Elongation
	270-410 MPa	≤ 280 MPa	≥ 28 %

Steel grade	Yield Strength a MPa	Tensile Strength Mpa ≥	After Breakage Percent Elongation (L o =80mm, b=20mm) % ≥				r b,c ≥	n b, c ≥
			Nominal Thickness mm
			< 0.70	0.70-< 1.0	1.0-< 1.6	≥ 1.6
DC04 (St14, St15)	120-210	270	36	38	39	40	1.5	0.18

Scope of Application

DIN 17100 steel plate is especially suitable for heavy-duty parts of welded structures, such as bridges, flood doors, storage tanks, water supply tanks, etc., and must be used in the environment and low temperature.
