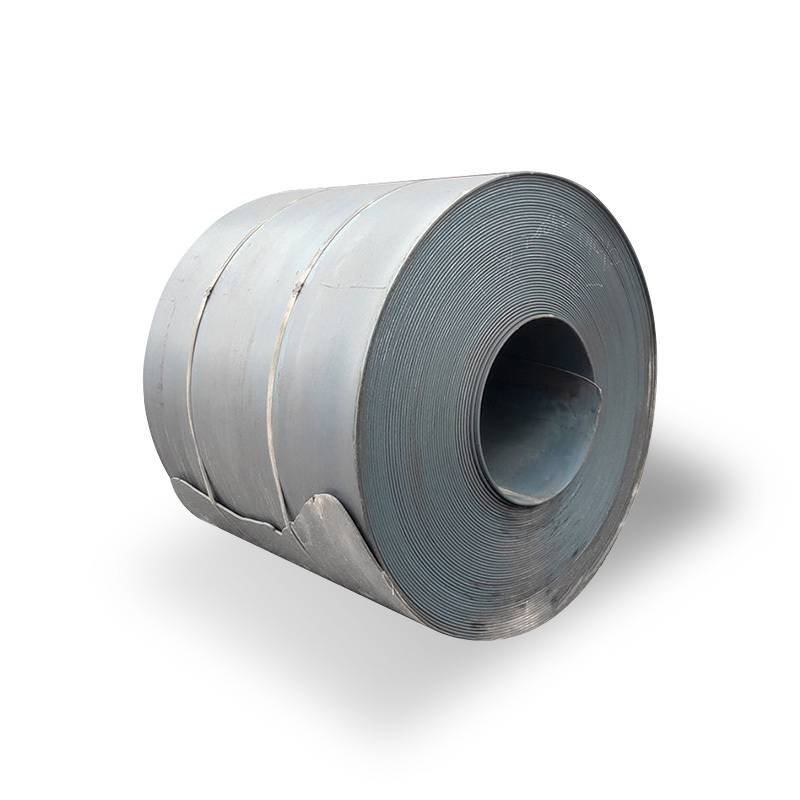

DIN 17155 Pressure Vessel Carbon Steel Coil

DIN 17155 steel coils have excellent weldability and formability, allowing them to be easily made into complex shapes and structures. This property is particularly beneficial for projects that require precision and adaptability. In addition, the steel’s corrosion and wear resistance ensures a longer service life, reducing maintenance costs and downtime.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Customer feedback

Transport packaging

DIN 17155 Pressure Vessel Carbon Steel Coil Description

Made from high-quality steel that meets stringent industry standards, DIN 17155 Pressure Vessel Steel Coil is the ideal choice for manufacturers and engineers who need materials that can withstand the most demanding conditions. Its exceptional strength and durability make it suitable not only for boilers and pressure vessels, but also for the production of high-temperature liquid transport piping. This versatility allows it to be seamlessly integrated into a variety of industrial processes, improving operational efficiency and performance.

Product Parameters

Product Name	DIN 17155 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

DIN 17155	C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo
15Mo3	0.12-0.20	0.10-0.35	0.40-0.90	0.035	0.03	-	0.25	0.3	0.3	0.25-0.35
13CrMo44	0.08-0.18	0.10-0.35	0.40-0.10	0.035	0.03	-	0.70-1.10	0.3	-	0.4-0.6
17Mn4	0.14-0.20	0.4	0.90-1.40	0.035	0.03	0.02	0.25	0.3	0.3	0.1
10CrMo9-10	0.06-0.15	0.5	0.40-0.70	0.035	0.03	-	2.00-2.50	0.3	-	0.9-1.0
19Mn6	0.2	0.5	0.90-1.70	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HI	0.16	0.35	0.40/1.20	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HII	0.2	0.35	0.50-1.30	0.035	0.03	0.02	0.25	0.3	0.3	0.1

Equivalent Material

DIN 17155	Material No.	EN 10028-2	UNI 5869	BS 1501	A 36087	ASTM	JIS G3115
HI	1.0345	P235GH	Fe360 - 1KW	161 Gr.360 / 164 Gr.360	A37 RCI	A 285 Gr.C/ A 414 Gr.C / A 516 Gr.55	SPV 24
HII	1.0425	P265GH	Fe410 - 1KW	161 Gr.400 / 164 Gr.400 / 224 Gr.400	A42 RCI	A 414 Gr.E / A 516 Gr.60	-
17Mn4	1.0481	P295GH	Fe460 - 1KW	224 Gr.490	A47 RCI	A 414 Gr.F / A 516 Gr.65	SPV 32
19Mn6	1.0473	P355GH	Fe510 - 1KW	-	A52 RCI	A 414 Gr.G	SPV 36
15Mo3	1.5415	16Mo3	15Mo3	1503 - 243 B	16Mo3	A 204 Gr.B	-
13CrMo44	1.7335	13CrMo4-5	14CrMo4.5	620 Gr.27	14CrMo4.5	A 387 Gr.12	-
10CrMo910	1.7380	10CrMo9-10	-	622 Gr.31	-	A 387 Gr.22	-

Scope of Application

DIN 17155 pressure vessel steel plates are widely used in gas, petrochemical and other industries, especially in the manufacture of boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic supports, etc.
