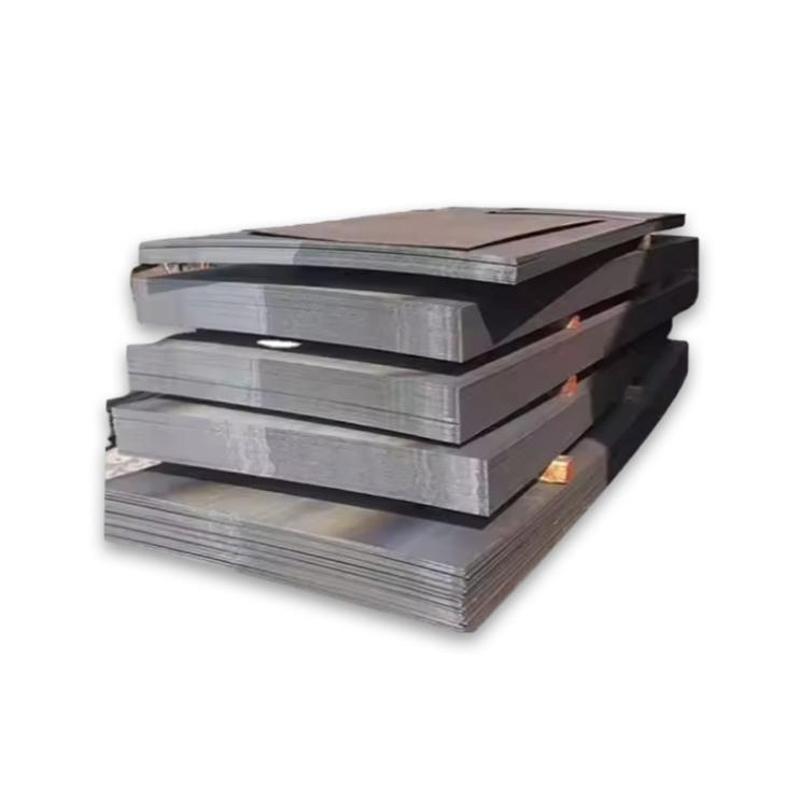

Durable A516 Hot Rolled Steel Plate

A516 hot rolled steel plate is a premium-grade boiler and pressure vessel steel, well-suited for applications requiring low to medium temperatures.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A516 Hot Rolled Steel Plate description

A516 steel plate is categorized into four grades based on its minimum tensile strength: grade 55, grade 60, grade 65, and grade 70. This steel not only exhibits exceptional strength but also offers outstanding toughness, wear resistance, fatigue resistance, impact resistance, ease of welding, and cold forming performance. It is commonly utilized in the petrochemical container manufacturing industry for applications such as pressure vessel fabrication, reactors, heat exchangers, petrochemical equipment, petroleum machinery, power station equipment, spherical tanks, nitrogen tanks, gas cylinders, and liquefied gas tanks.

Product Parameters

Product Name	A516 Hot Rolled Steel Plate
Type	Hot Rolling, Cold Rolling
Thickness	0.1mm-400mm
Length	1m-12m, or Customized Size
Width	100mm-3000mm
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Scope of Application	ASTM A516 boiler vessel plates are employed in the production of gas pressure vessels (liquefied petroleum gas, butane and propane tanks), steam boiler components, compressors, and more.
Certificate	ISO, SGS, BV, etc.
Production Technology	Rolling, Annealing, Quenching, Tempered or Standard
Edge Processing	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A516	C Thickness (mm)				Mn Thickness (mm)		Si	P	S
A516	6-12.5mm	12.5-25mm	25-50mm	>50mm	≤ 12.5mm	>12.5mm	Si	P	S
Level 55	0.18	0.20	0.22	0.25	0.55~0.98	0.60~1.30	0.13~0.45	0.035	0.035
Level 60	0.21	0.23	0.23	0.25	0.6~0.9	0.80~1.20	0.13~0.45	0.035	0.035
Level 65	0.24	0.26	0.26	0.28	0.85~1.20	0.85~1.20	0.13~0.45	0.035	0.035
Level 70	0.27	0.28	0.28	0.3	0.85~1.20	0.85~1.20	0.13~0.45	0.035	0.035

Mechanical Properties

ASTM A516	Tensile Strength	Yield	Lower limit of Elongation(%)
ASTM A516	(MPa)	(MPa)	Gauge Length 50mm	Gauge Length 200mm
Level 55	380~515	205	27	23
Level 60	415~550	220	25	21
Level 65	450~585	240	23	19
Level 70	485~620	260	21	17

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80g/cc	0.282 lb/in³

Equivalent Material

American Standard		German Standard	European Standard		English Standard
ASTM	ASME	DIN 17155	EN 10028	Material No.	BS1501
Level 60	SA516 Gr.60	HII	P265GH	1.0425	161 430A
Level 65	SA516 Gr.65	17Mn4	P295GH	1.0481	-
Level 70	SA516 Gr.70	-	P355GH	-	224-490 A&B
