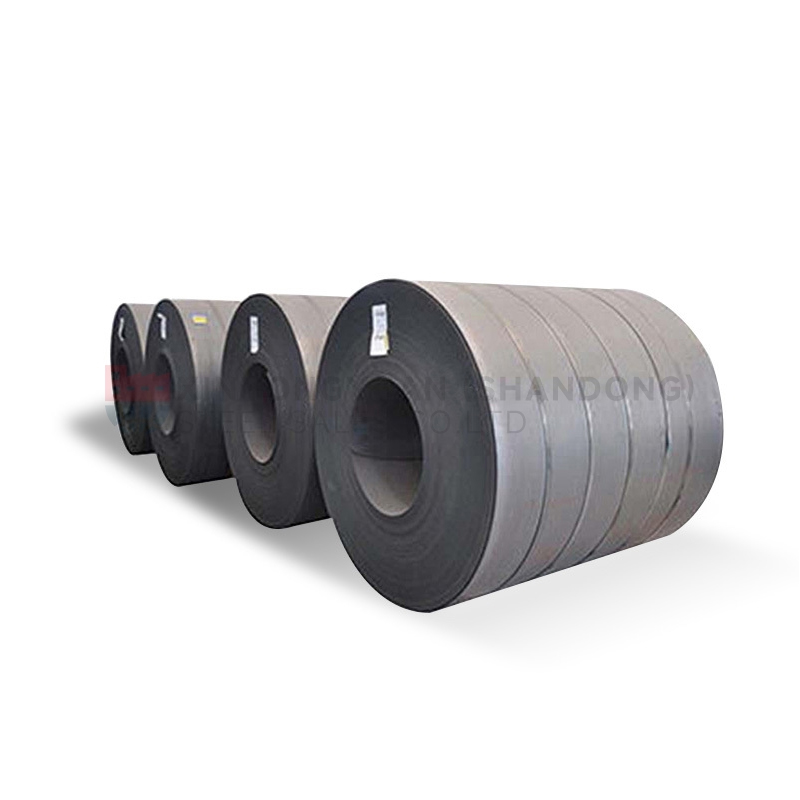

EN10025-2 S235/S275/S355 Carbon Steel Coil

EN10025-2 steel coil is a low-alloy high-strength structural steel, derived from carbon structural steel with the addition of a small amount of alloying elements.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

EN10025-2 S235/S275/S355 Carbon Steel Coil description

EN10025-2 steel coil exhibits excellent welding performance, plasticity, toughness, and processing technology, along with good corrosion resistance, high strength, and a low cold brittle critical transition temperature. The utilization of high-strength low-alloy steel coils effectively reduces the weight of the structure, enhances its strength and stiffness, and improves durability while reducing the thickness of the structure. These steel coils are commonly employed in construction equipment, crane booms, automobile frames, and general manufacturing, making them particularly suitable for use in low-temperature environments.

Product Parameters

Product Name	EN10025-2 S235/S275/S355 Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film
Scope of Application	EN10025-2 steel plate structures find application in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, and various other heavy equipment.

Chemical Composition

Brand	C			Si max	Mn max	P max	S max	N max	Cu max
Brand	≤ 16	16-40	>40	Si max	Mn max	P max	S max	N max	Cu max
S235JR	0.17	0.17	0.20	-	1.40	0.035	0.035	0.012	0.55
S275JR	0.21	0.21	0.22	-	1.50	0.035	0.035	0.012	0.55
S275J0	0.18	0.18	0.18	-	1.50	0.030	0.030	0.012	0.55
S275J2	0.18	0.18	0.18	-	1.50	0.025	0.025	-	0.55
S355JR	0.24	0.24	0.24	0.55	1.60	0.035	0.035	0.012	0.55
S355J0	0.20	0.20	0.22	0.55	1.60	0.030	0.030	0.012	0.55
S355J2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	-	0.55

Mechanical Properties

Thickness mm	Tensile Strength
Thickness mm	≤3	3-100	100-150	150-250	250-400
S235JR	360-510	360-510	350-500	340-490	-
S275JR	430-580	410-560	400-540	380-540	-
S275J0	430-580	410-560	400-540	380-540	-
S275J2	430-580	410-560	400-540	380-540	-
S355JR	510-680	470-630	450-600	450-600	-
S355J0	510-680	470-630	450-600	450-600	-
S355J2	510-680	470-630	450-600	450-600	450-600

Thickness mm	Yield Strength
Thickness mm	≤ 16	16-40	40-63	63-80	80-100	100-150	150-200	200-250	250-400
S235JR	235	225	215	215	215	195	185	175	-
S275JR	275	265	255	245	235	225	215	205	-
S275J0	275	265	255	245	235	225	215	205	-
S275J2	275	265	255	245	235	225	215	205	195
S355JR	355	345	335	325	315	295	285	275	-
S355J0	355	345	335	325	315	295	285	275
S355J2	355	345	335	325	315	295	285	275	265
