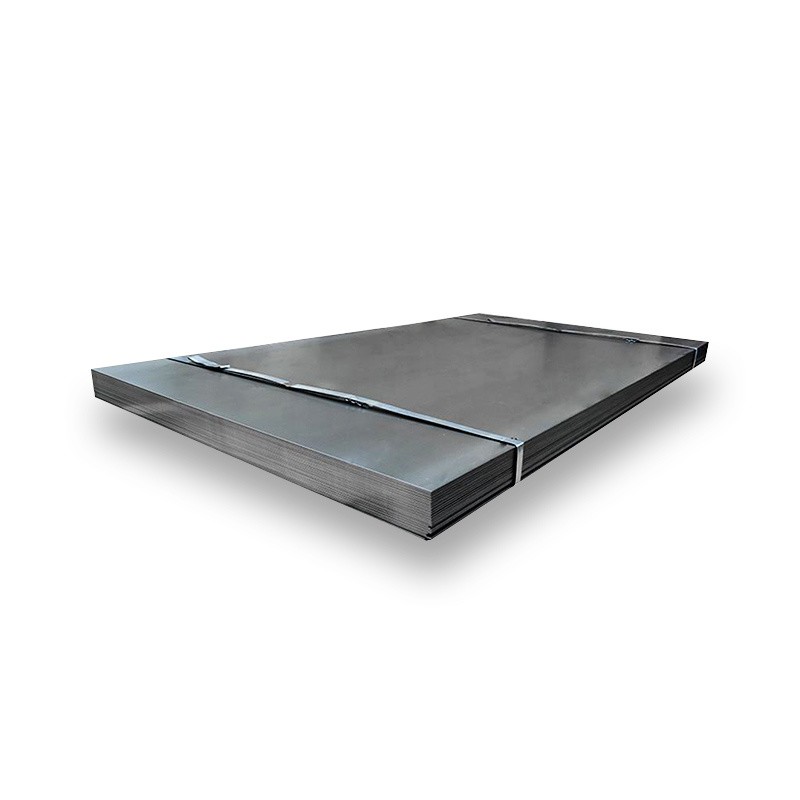

EN10025-2 S235/S275/S355 Carbon Steel Plate

In the world of construction and engineering, the choice of materials can have a significant impact on the durability and performance of a project. EN10025-2 Steel Plate is a low alloy, high strength structural steel that is revolutionizing the industry. This exceptional product is manufactured from high quality carbon structural steel with a carefully selected blend of alloying elements to create a material that is not only strong but also versatile.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

EN10025-2 S235/S275/S355 Carbon Steel Plate Description

Designed to meet the stringent requirements of modern construction, EN10025-2 steel plates have an excellent strength-to-weight ratio, reducing the weight of structures without compromising safety or integrity. Its unique composition ensures excellent weldability and formability, making it ideal for a variety of applications from bridges and buildings to heavy machinery and automotive components.What sets EN10025-2 steel plates apart is their ability to withstand extreme conditions. With excellent wear resistance, this steel plate offers impressive performance in high-stress environments and is built to last. Whether you are working on a large infrastructure project or a specialized industrial application, EN10025-2 steel plates give you the reliability and strength you need to get the job done.In addition to its mechanical properties, EN10025-2 steel sheet also has environmentally friendly properties as it can be recycled and reused, contributing to sustainable construction practices.

Product Parameters

Product Name	EN10025-2 S235/S275/S355 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Brand	C			Si max	Mn max	P max	S max	N max	Cu max
Brand	≤ 16	16-40	> 40	Si max	Mn max	P max	S max	N max	Cu max
S235JR	0.17	0.17	0.20	-	1.40	0.035	0.035	0.012	0.55
S275JR	0.21	0.21	0.22	-	1.50	0.035	0.035	0.012	0.55
S275J0	0.18	0.18	0.18	-	1.50	0.030	0.030	0.012	0.55
S275J2	0.18	0.18	0.18	-	1.50	0.025	0.025	-	0.55
S355JR	0.24	0.24	0.24	0.55	1.60	0.035	0.035	0.012	0.55
S355J0	0.20	0.20	0.22	0.55	1.60	0.030	0.030	0.012	0.55
S355J2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	-	0.55

Mechanical Properties

Thickness mm	Tensile Strength
Thickness mm	≤ 3	3-100	100-150	150-250	250-400
S235JR	360-510	360-510	350-500	340-490	-
S275JR	430-580	410-560	400-540	380-540	-
S275J0	430-580	410-560	400-540	380-540	-
S275J2	430-580	410-560	400-540	380-540	-
S355JR	510-680	470-630	450-600	450-600	-
S355J0	510-680	470-630	450-600	450-600	-
S355J2	510-680	470-630	450-600	450-600	450-600

Thickness mm	Yield Strength
Thickness mm	≤ 16	16-40	40-63	63-80	80-100	100-150	150-200	200-250	250-400
S235JR	235	225	215	215	215	195	185	175	-
S275JR	275	265	255	245	235	225	215	205	-
S275J0	275	265	255	245	235	225	215	205	-
S275J2	275	265	255	245	235	225	215	205	195
S355JR	355	345	335	325	315	295	285	275	-
S355J0	355	345	335	325	315	295	285	275
S355J2	355	345	335	325	315	295	285	275	265

Scope of Application

EN10025-2 steel plate structures are used in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, etc.
