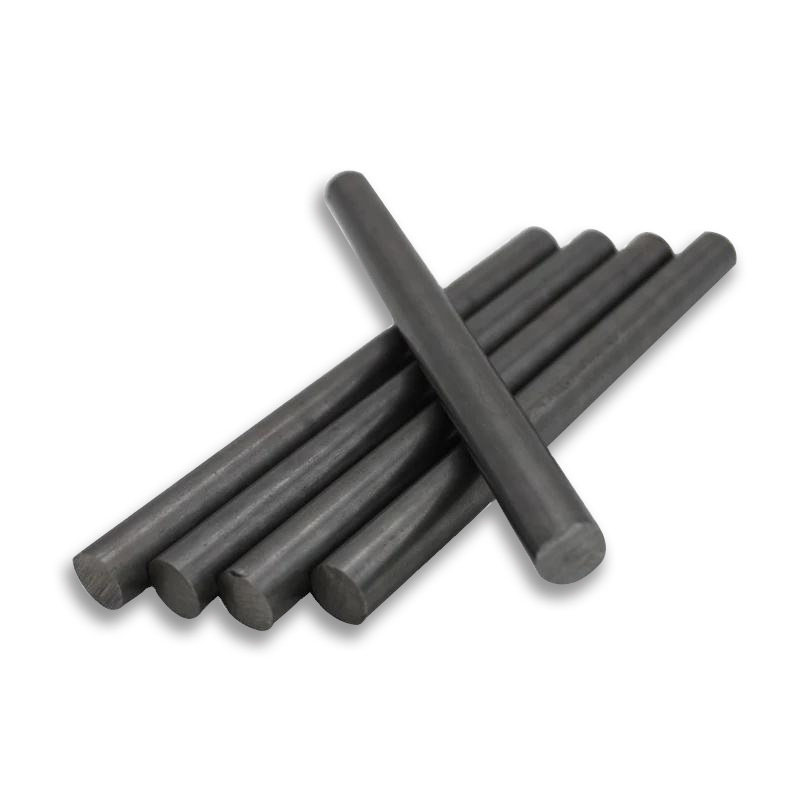

Heavy Duty AISI/SAE 4340 Alloy Steel Bar

AISI 4340 carbon steel bar is crafted from a heat-treatable low alloy steel comprising chromium, nickel, and molybdenum. It offers high toughness and strength under heat treatment conditions.


    Picture Name

    AISI/SAE 4340 Alloy Steel Bar Description

    AISI 4340 is a widely utilized alloy steel known for its high strength, toughness, excellent wear resistance, and corrosion resistance. Its moderate carbon content contributes to good machinability and weldability. Furthermore, the inclusion of appropriate amounts of chromium, nickel, and other elements enhances its overall performance. Notably, it exhibits commendable toughness and ductility, maintaining reliable performance in both high and low-temperature environments. Due to its outstanding physical and mechanical properties, 4340 steel bars find extensive use in equipment manufacturing for corrosive environments such as in the petroleum, chemical industry, and maritime applications.

    Product Parameters

    Product Name AISI/SAE 4340 Alloy Steel Bar
    Standard EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
    Common Round Bar Specifications 3.0-50.8 mm, Over 50.8-300mm
    Flat Steel Common Specifications 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
    Hexagon Bar Common Specifications AF5.8mm-17mm
    Square Bar Common Specifications AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
    Length 1-6meters, Size Accept Custom
    Diameter(mm) Hot Rolling Round Bar 25-600 Cold Rolling Square Bar 6-50.8
    Hot Rolling Square Bar 21-54 Cold Rolling Hexagon Bar 9.5-65
    Cold Rolling Round bar 6-101.6 Forged Rebar 200-1000
    Surface Process Bright, Polished, Black
    Other Services Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.
    Scope of Application AISI 4340 alloy steel is predominantly employed for power transmission gears and shafts, as well as for aircraft landing gear and other structural components.

    Chemical Composition

    Grade Mn S C P Si Cr Ni
    AISI 4340 0.60-0.80 0.035 0.38-0.43 0.04 0.15-0.35 0.70-0.90 1.65-2.00

    Mechanical Properties

    Grade Tensile Strength kg f/mm2 Yield Strength kg f/mm2 Elongation % Hardness HB
    AISI 4340 ≥ 100 ≥90 ≥ 16 293-352
