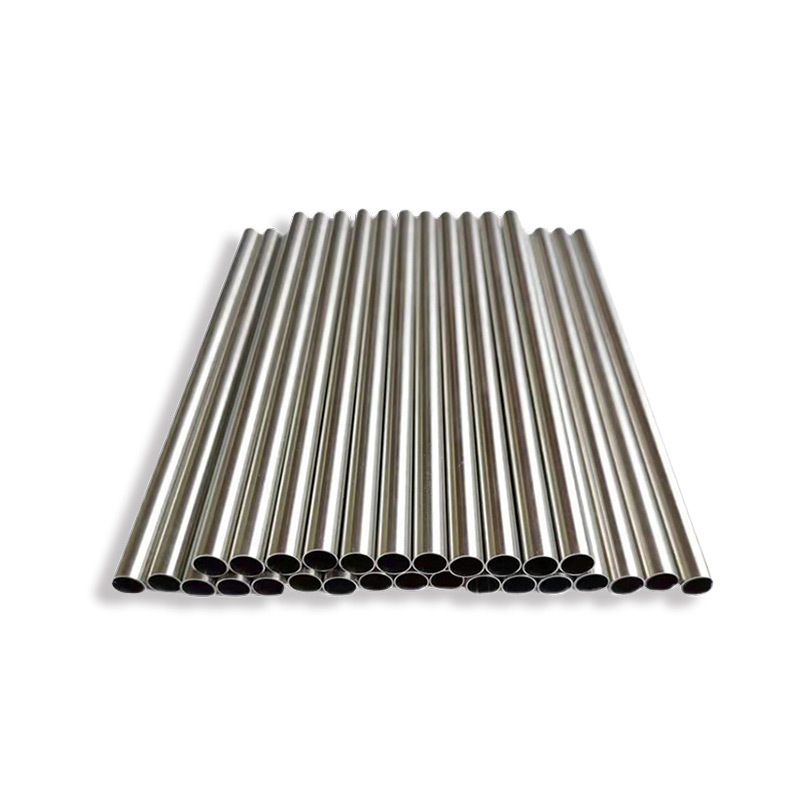

High Performance 304 Stainless Steel Pipe

304 stainless steel is widely acknowledged for its outstanding corrosion resistance, heat resistance, low-temperature strength, and mechanical properties. Moreover, it exhibits exceptional hot-workability, allowing for processes such as stamping and bending without experiencing heat treatment hardening phenomena, making it one of the most extensively utilized materials.


    Picture Name

    304 Stainless Steel Pipe Description

    304 stainless steel pipe is widely recognized as the most common type of steel pipe globally, owing to its numerous advantageous characteristics. Comprised primarily of iron, chromium, and nickel, this composition results in exceptional oxidation and corrosion resistance. 304 stainless steel is a versatile material with superior anti-rust properties compared to 200 series stainless steel, and it also exhibits enhanced high-temperature resistance. The pipe features a smooth surface, high plasticity, toughness, and mechanical strength, and demonstrates remarkable resistance to corrosion by acids, alkaline gases, solutions, and other media. Due to its versatility and relatively low cost, 304 stainless steel pipes find extensive use in food processing equipment, building materials, automobile parts, and various other fields.

    Product Parameters

    Product Name 304 Stainless Steel Pipe
    Type Steel Pipe
    Outer diameter Round Tube 4mm-200mm
    Square Tube 10*10mm-100*100mm
    Rectangular Tube 10*20mm-50*100mm
    Wall Thickness 0.6mm-6.0mm
    Length 1-6 meters, Length can be customized
    Standard ASTM, AISI, JIS, GB, DIN, EN, etc.
    Surface Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
    Scope of Application Stainless steel pipes are utilized in a wide range of applications, including food processing, textile operations, breweries, water treatment plants, oil and gas processing, fertilizers and pesticides production, chemical applications, construction, pharmaceuticals, and auto parts manufacturing, among others.
    Certificate ISO, SGS, BV, etc.
    Production Technology Hot Rolling, Cold Rolling
    Edge Processing Edging, Trimming

    Chemical Composition

    C Si Mn Cr Ni S P
    ≤ 0.08 ≤1.0 ≤ 2.0 18.0~20.0 8.0~10.5 ≤ 0.03 ≤ 0.035

    Mechanical Properties

    Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
    ≥ 520 ≥ 205 ≥ 40 ≤ 187HB ;≤ 90HRB;≤ 200HV

    Physical Performance

    Density(g/cm³) Modulus of Elasticity(Gpa) Coefficient of Thermal Expansion(10-6/°C) Coefficient of Thermal Conductivity(W/m*K) Resistivity(ΜΩ. cm)
    8.03 193 16.9 16.2 72
