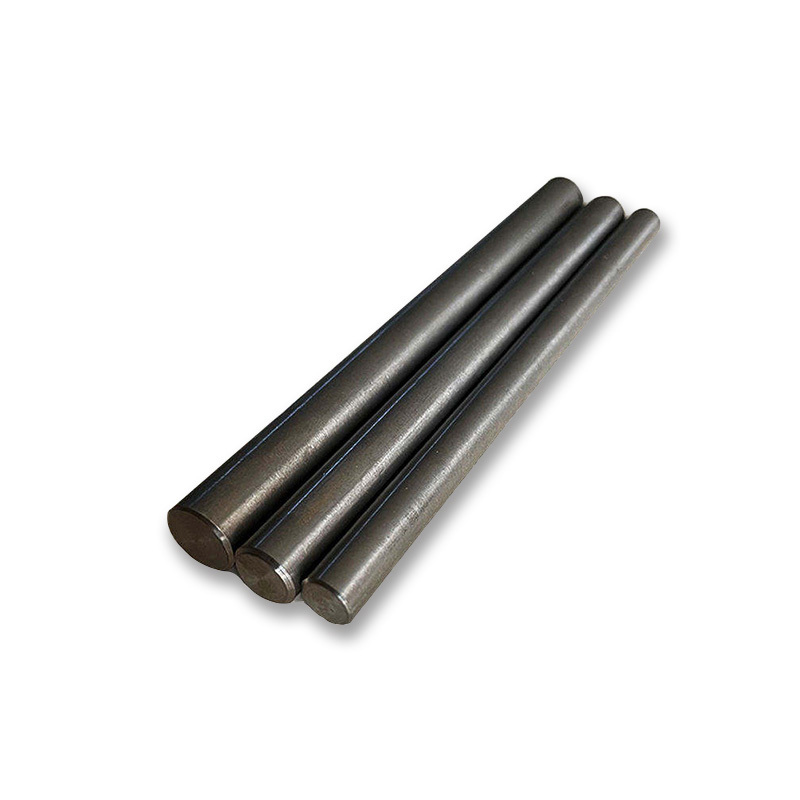

A36 Round Steel Bar Description
The steel bar primarily comprises iron, carbon, silicon, manganese, phosphorus, sulfur, and other elements, with iron constituting over 99% of the entire chemical composition. It features a relatively high carbon content, approximately 0.2%, ensuring the steel possesses a certain level of hardness and toughness. The addition of silicon, manganese, and other elements enhances the strength and toughness of the steel. With low levels of phosphorus and sulfur, the steel bar exhibits good welding performance and corrosion resistance.
A36 steel bar is utilized for welded, bolted, or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its low yield point, A36 can be employed to design lighter-weight structures and equipment, while also offering good weldability.
Product Parameters
| Product Name | A36 Round Steel Bar | |||
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
| Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm | |||
| Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm-17mm | |||
| Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
| Length | 1-6meters, Size Accept Custom | |||
| Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
| Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 | |
| Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
| Surface Process | Bright, Polished, Black | |||
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
| Scope of Application | Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs. Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc. | |||
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
| 0.25～0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
| A36 | Limit Tensile Strength | Tensile Strength, Yield Strength | Elongation at Break(Unit: 200mm) | Elongation at Break(Unit: 50mm) | Modulus of Elasticity | Bulk Modulus(Typical for Steel) | Poisson's Ratio | Shear Modulus |
| Metric | 400～550MPa | 250MPa | 20.0% | 23.0% | 200GPa | 140GPa | 0.260 | 79.3GPa |
| Imperial | 58000～79800psi | 36300psi | 20.0% | 23.0% | 29000ksi | 20300ksi | 0.260 | 11500ksi |
Physical Performance
| Physical Performance | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Equivalent Material
| National Standard GB | European Standard EN | American Standard ASTM | German Standard DIN,WNr | Japanese Standard JIS | French Standard AFNOR | British Standard BS | Canada HG |
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
| Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
| Fe360B | IS2062 | 1311/1312 | RSt360B | NS12123 | AE235B-FN |
