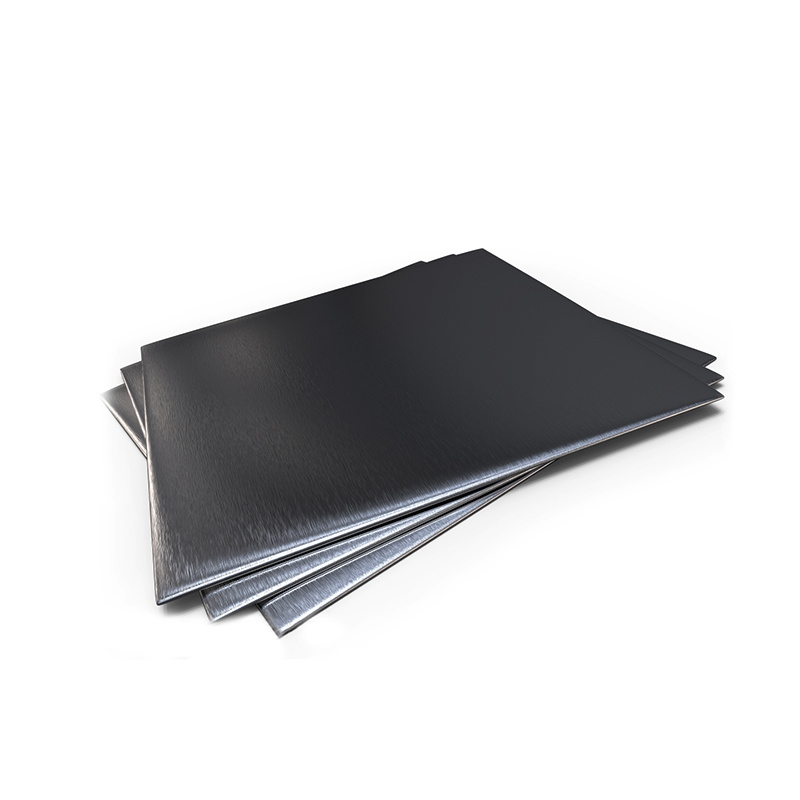

Multi-purpose 316Ti Stainless Steel Plate

316Ti is a titanium-stabilized variant of 316 molybdenum-containing austenitic stainless steel. It offers enhanced resistance to general corrosion and pitting/crevice corrosion compared to conventional chromium-nickel austenitic stainless steels like 304.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

316Ti Stainless Steel Plate Description

316Ti stainless steel exhibits exceptional corrosion resistance in various corrosive media, including acids, alkalis, and salts. Its high chromium and nickel content, along with the addition of titanium, contributes to improved corrosion resistance by forming a stable passivation film. Additionally, 316Ti stainless steel offers favorable processing properties, including weldability, bending formability, and machining performance, facilitating easy processing and connection during manufacturing, thereby enhancing production efficiency. Furthermore, it maintains good strength and stability at high temperatures, enabling its use in the temperature range of -253°C to 400°C. As a result, it finds widespread application in high-temperature environments within the petroleum, chemical, and other industries.

Product Parameters

Product Name	316Ti Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	This stainless steel is extensively utilized in a wide range of applications, including high-temperature and electrical industries, medical equipment construction, chemical and food industries, agriculture, ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, as well as in bolts, nuts, springs, and screens, among others.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	S	P	Mo	Ti
≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.99	193	16.0	16.2	74
