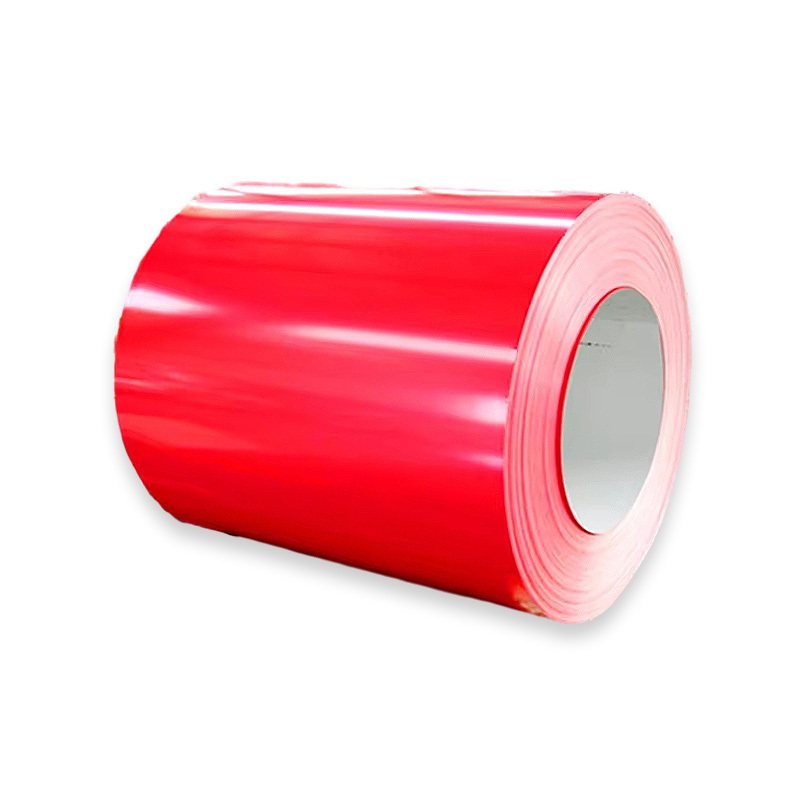

PPGL Steel Coil Description
PPGL stands for Pre-Painted Galvalume Steel, a premium color-coated steel product with a GL base material. This unique combination takes advantage of the steel’s rugged strength while providing superior corrosion protection with its advanced Zn-Al coating. The galvalume coating is composed of 55% aluminum, 43.4% zinc and 1.6% silicon, creating a strong barrier against corrosion. This innovative composition not only increases the material’s lifespan, but also ensures that its structural integrity is maintained even in the harshest environments.One of the outstanding features of PPGL sheet is its excellent heat reflectivity. This property makes it highly heat resistant, which improves the energy efficiency of buildings and reduces the need for excessive cooling systems. Whether you are constructing a commercial building, a residence or an industrial facility, PPGL offers an ideal solution that combines functionality and style.
Product Parameters
|
Product Name |
PPGL Steel Coil |
|
Thickness |
0.13mm-0.8mm |
|
Width |
600mm-1250mm |
|
Length |
Support Customization |
|
Color |
According RAL Color Card (Can provide custom pattern) |
|
Paint |
PE, SMP, HDP, PVDF |
|
Primer |
Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer |
|
Coating Thickness |
Top Coat: 10-30mic, Back Paint: 5-25mic |
Color Selection
We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.
Surface Treatment
Laminated Film
The process is to coat a transparent organic film (30-50 µm) on the steel coil at high temperature. It has some unique properties, such as fire resistance, fingerprint resistance, excellent durability, anti-fouling ability, etc. Obviously, this treatment method can protect the steel coil well during storage and transportation.
Embossing
Embossed PPGI steel coil design has different patterns. Popular patterns are stucco, rhombus, etc. And it's customizable. Compared with the smooth steel coil, it has a vivid 3D effect.
Coating Type
In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester Smp
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.
Scope of Application
Construction industry: such as roof, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: For example, car trim panels, train or ship decks, containers, etc.
Electrical equipment: mainly used for making freezers, washing machines, air conditioners and other enclosures. PPGI coils for home appliances have the best quality and the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, etc.
