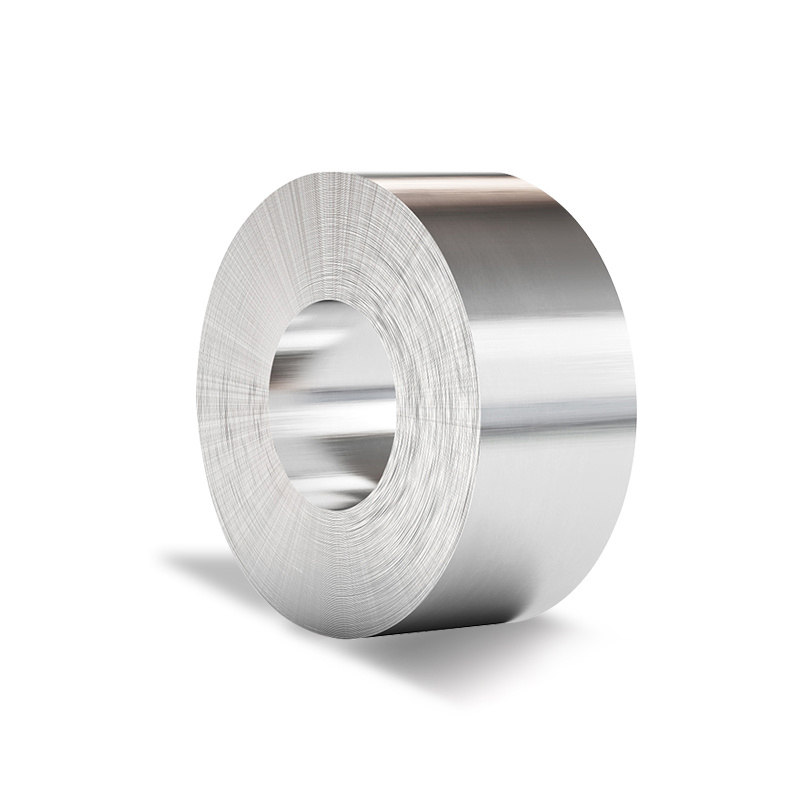

304L Stainless Steel Coil Description
The 304L stainless steel coil is a variation of the 304 stainless steel coil, featuring a lower carbon content and is particularly suitable for welding applications. The reduced carbon content helps minimize the precipitation of carbides in the heat-affected zone near the weld, which can lead to intergranular corrosion in certain environments. Essentially, using 304L eliminates the need to anneal weld joints before using the finished metal form, saving time and effort. In general, both 304 and 304L stainless steel coils can be applied to many of the same uses, with differences often minor enough that one is not significantly more advantageous than the other. 304L stainless steel coil is widely utilized in various fields such as food processing equipment, building materials, and automobile parts.
Product Parameters
| Product Name | 304L Stainless Steel Coil |
| Type | Steel Coil |
| Thickness | 2.5mm-10.0mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Width | 610mm-2000mm |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Scope of Application | This stainless steel is extensively utilized across various industries, including high-temperature and electrical sectors, medical equipment construction, chemical and food industries, agriculture, ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, as well as in bolts, nuts, springs, and screens, among others. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
| ≤ 0.03 | ≤1.0 | ≤ 2.0 | 18.0~20.0 | 8.0~12.0 | ≤ 0.03 | ≤ 0.035 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 520 | ≥ 205 | ≥ 40 | ≤ 187HB ;≤ 90HRB;≤ 200HV |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 8.03 | 193 | 16.9 | 16.2 | 72 |
