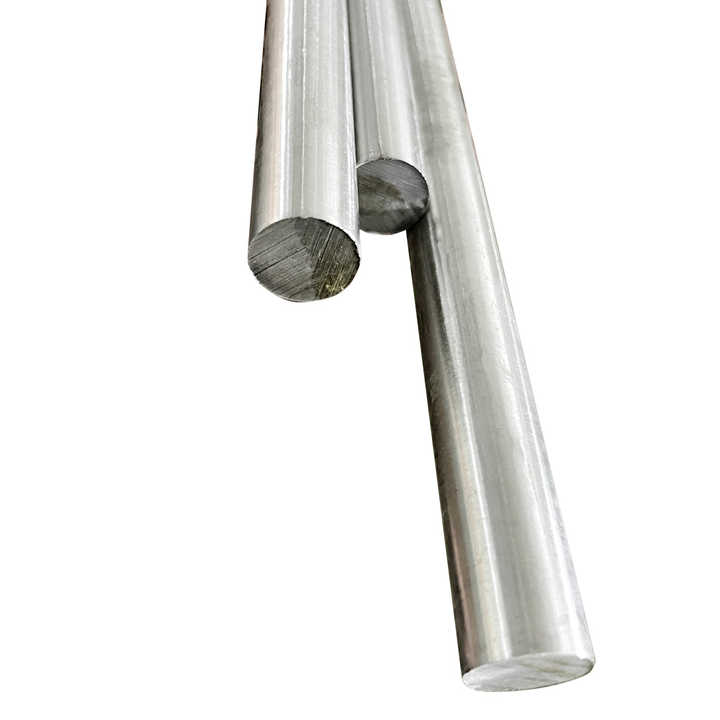

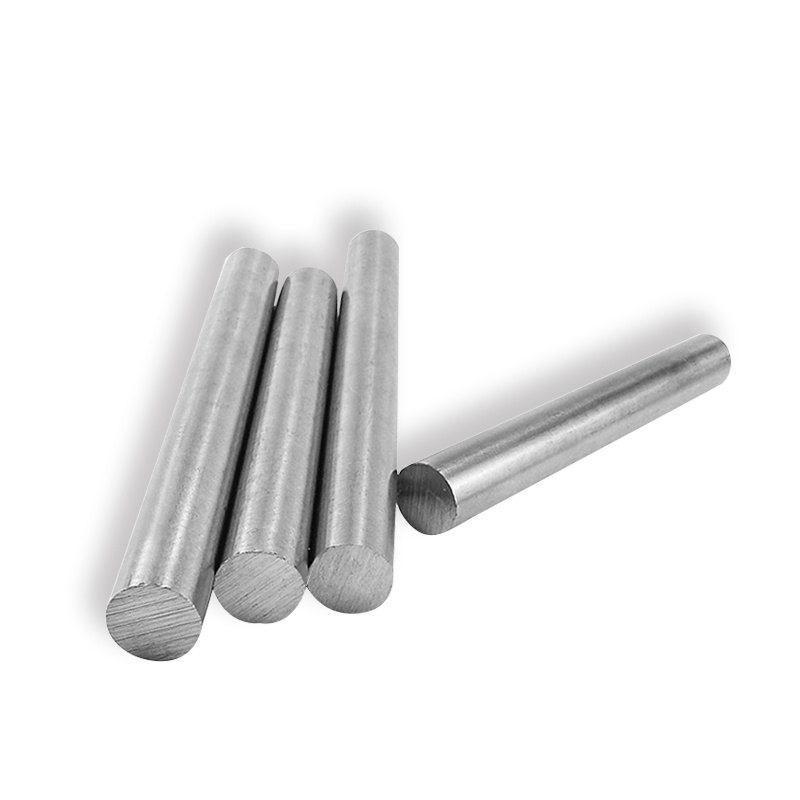

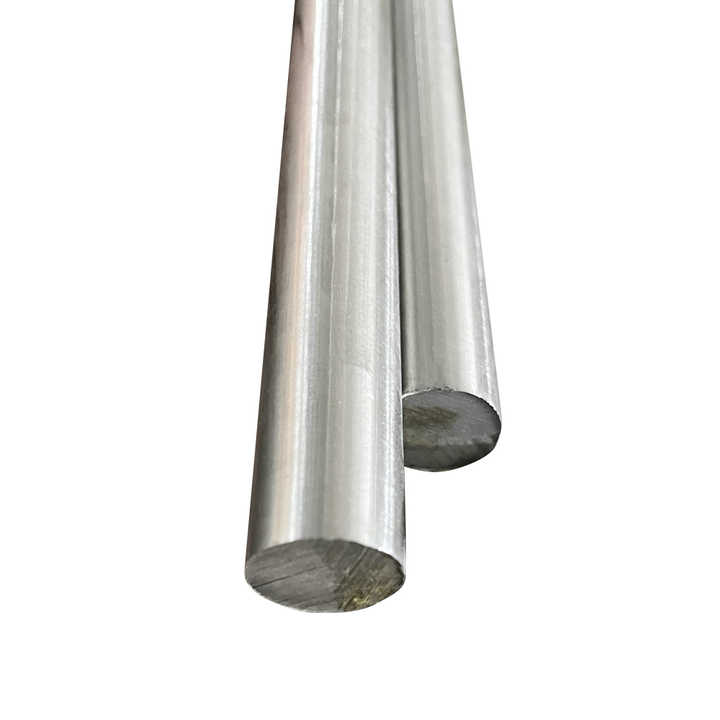

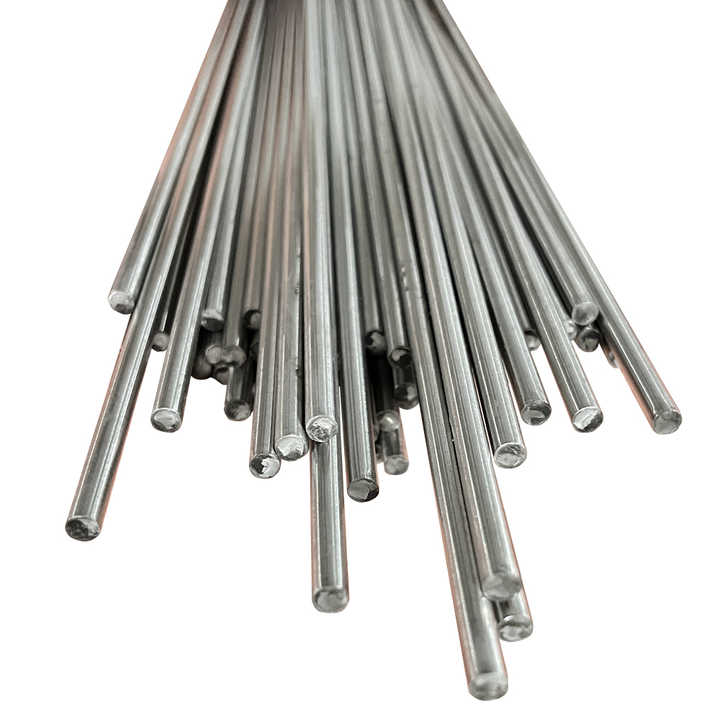

Top 2205 Duplex Stainless Steel Bar
- Wechat:18365798883
- WhatsApp:+86-18365798883
- E-Mali:admin@sdxyy.cn
2205 Duplex Stainless Steel Bar Description
2205 Duplex stainless steel bars exhibit more than double the yield strength of ordinary austenitic stainless steel, while also possessing sufficient plastic toughness for molding. Additionally, they offer good local corrosion resistance and, compared to austenitic stainless steel with similar alloy content, demonstrate superior wear corrosion resistance and fatigue corrosion performance. Under both dynamic and static load conditions, 2205 duplex stainless steel bars have a higher energy absorption capacity than austenitic stainless steel, making them advantageous for structural parts in coping with emergencies such as collisions and explosions.
Product Parameters
| Product Name | Top 2205 Duplex Stainless Steel Bar | |
| Type | Steel Bar | |
| Outer Diameter | Round Bar | 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc. | |
| Scope of Application | Stainless steel bars find extensive applications across a wide range of industries, including shipbuilding, defense, automotive, textiles, paper and pulp, manufacturing, cement, heavy earthmoving equipment, and construction. | |
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
| ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 21.0～23.0 | 4.5～6.5 | 2.5～3.5 | ≤ 0.02 | ≤ 0.03 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥620 | ≥450 | ≥25 | ≤ 293HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 7.88 | 190 | 13.7 | 19.0 | 80 |
