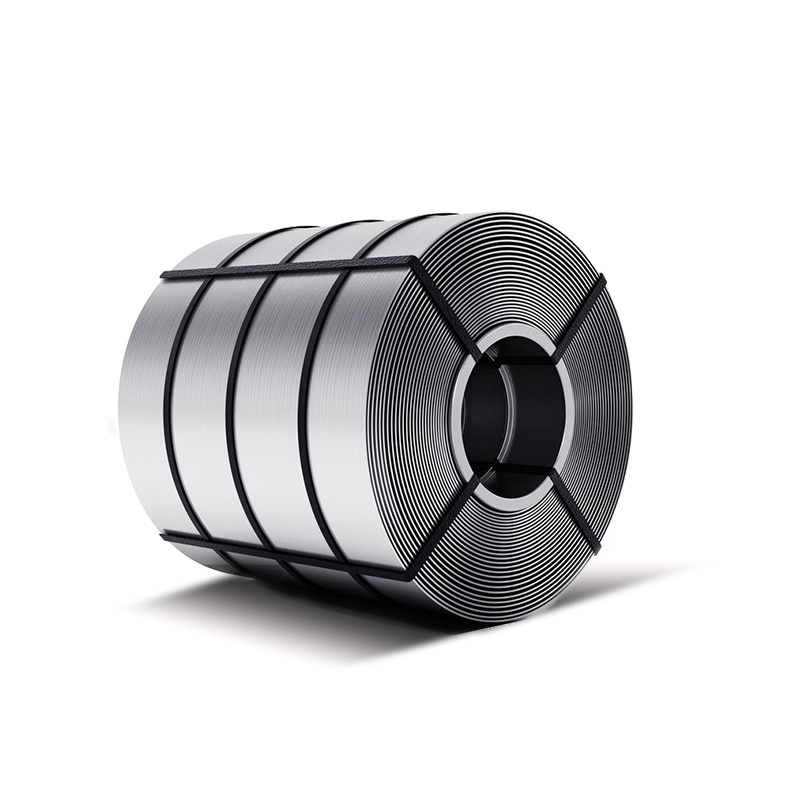

202 Stainless Steel Coil Description
202 stainless steel coil is a widely utilized stainless steel alloy in construction, manufacturing, and machining worldwide. It boasts good mechanical properties, corrosion resistance, and cost-effective manufacturing processes, making it suitable for numerous applications. Developed to conserve nickel resources, 202 stainless steel is an austenitic chromium-nickel-manganese stainless steel. It serves as a low-cost alternative to traditional austenitic steel grades like 304 and 316, offering excellent formability and weldability, despite not matching the strength or corrosion resistance of these grades. Common applications for 202 stainless steel include architectural decoration, municipal engineering, highway guardrails, medical device manufacturing, and food processing.
Product Parameters
| Product Name | 202 Stainless Steel Coil |
| Type | Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |

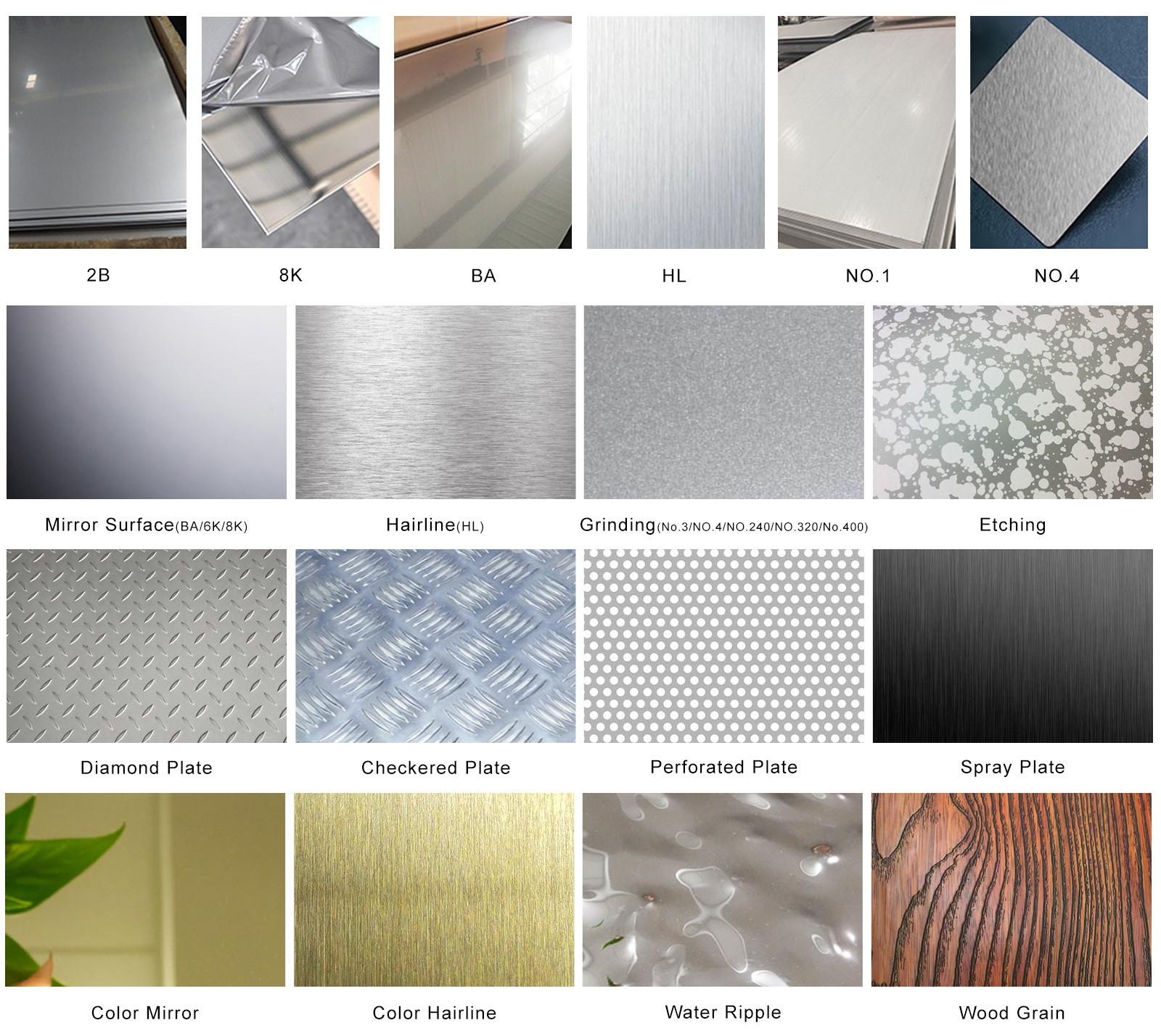

| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Scope of Application | This stainless steel is extensively used across various industries, including high-temperature and electrical sectors, medical equipment construction, chemical and food industries, agriculture, ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, as well as in bolts, nuts, springs, and screens, among other applications. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
| ≤ 0.03 | ≤1.0 | ≤ 2.0 | 21.0～23.0 | 4.5～6.5 | 2.5～3.5 | ≤ 0.02 | ≤ 0.03 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥620 | ≥450 | ≥25 | ≤ 293HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 7.88 | 190 | 13.7 | 19.0 | 80 |
